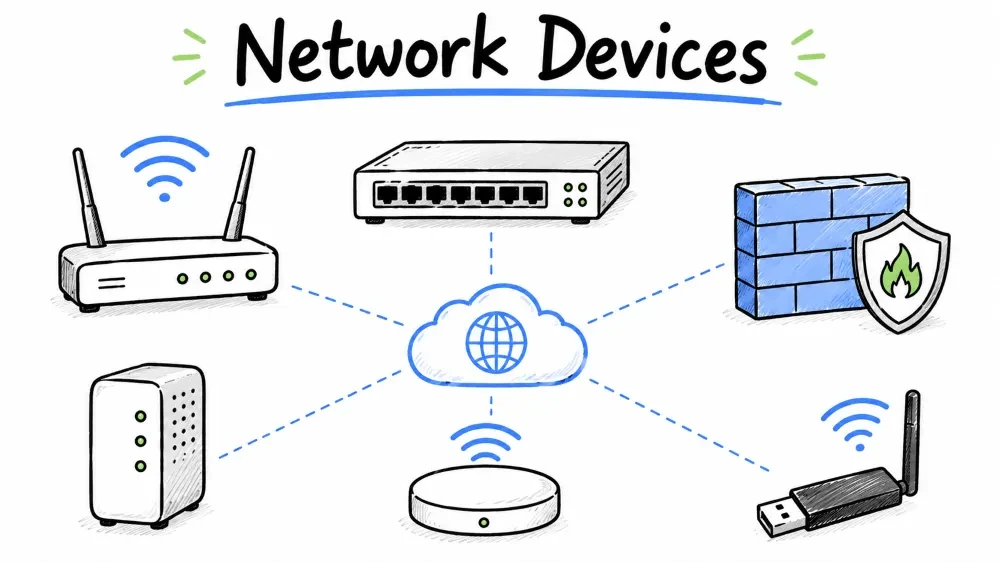

Overview: What are Network Devices?

Network Devices are hardware components used to connect computers and other devices together to form a network. They handle the transmission, routing, filtering, and management of data as it travels across the network.

                         NETWORK DEVICES

    ┌─────────────────────────────────────────────────────────────┐
    │                                                             │
    │   NIC ── Repeater ── Hub ── Bridge ── Switch ── Router      │
    │     ── Access Point ── Modem ── Gateway ── Firewall         │
    │                                                             │
    │   (Local)                         (Internetworking/Security)│
    │                                                             │
    └─────────────────────────────────────────────────────────────┘

This tutorial covers all major network devices — from basic local connectivity (NIC, Hub, Switch) to internetworking (Router, Modem) and security (Firewall).

1. NIC (Network Interface Card) — The Hardware That Connects a Device to the Network

NIC (Network Interface Card) is a hardware component installed inside a computer or device that provides a physical connection to the network. It converts data from the computer into a format that can travel over the network cable or wireless signal.

                    ┌─────────────────┐
                    │    Computer     │
                    │   ┌──────────┐  │
                    │   │   NIC    │  │
                    │   │ ┌──────┐ │  │
                    │   │ │ Port │ │  │
                    │   │ └──┬───┘ │  │
                    │   └────┼─────┘  │
                    └────────┼────────┘
                             │
                    Ethernet │ Cable (RJ45)
                             │
                    ┌────────┴────────┐
                    │     Switch      │
                    └─────────────────┘

How it works:

Computer sends data → NIC formats it into frames
→ Adds source & destination MAC addresses
→ Sends over the cable or wireless signal
→ NIC on receiving computer checks MAC and accepts if match

Types of NIC:

Every device on a network needs a NIC. The MAC address of the NIC is fundamental to Layer 2 switching and ARP protocol.

2. Repeater — Boosting Signals to Extend Network Distance

Repeater is a network device that regenerates and amplifies signals so they can travel longer distances without degradation. It operates at the Physical Layer (Layer 1).

    ┌────────┐    Weak Signal     ┌──────────┐    Strong Signal    ┌────────┐
    │  PC 1  │───────▬▬▬────────► │ Repeater │───────▬▬▬────────►  │  PC 2  │
    └────────┘                    └──────────┘                     └────────┘

    Without Repeater:
    PC 1 ──────▬▬▬▬▬▬▬▬►  (Signal becomes too weak after 100m)

    With Repeater:
    PC 1 ────▬▬► [Repeater] ────▬▬► PC 2  (Signal restored)

Advantages

• Extends network distance — overcomes signal degradation
• Simple device — plug and play, no configuration needed
• Low cost — inexpensive hardware

Disadvantages

• No filtering — forwards everything, including noise and errors
• Does not reduce collisions — actually increases collision domain
• Signal quality — amplifies noise along with the signal (analog repeaters)
• Obsolete — in modern networks, switches and access points have built-in repeater functionality

Repeaters extend the maximum cable length of a network segment. For Ethernet, the 5-4-3 rule limits repeater usage.

3. Hub — Broadcasting Data to All Connected Devices Without Intelligence

Hub is a basic network device that connects multiple devices in a LAN. It works at the Physical Layer (Layer 1) and simply copies incoming data to all other ports — it has no intelligence.

                   ┌─────┐
        ┌──────────┤ PC 1│
        │          └─────┘
        │
   ┌────┴─────┐
   │          │
   │   HUB    │  (Broadcasts data to ALL ports)
   │          │
   └────┬─────┘
        │
   ┌────┴─────┐
   │   PC 2   │
   └──────────┘

How data flows on a Hub:

PC 1 sends data to PC 2:

   PC 1 ──► HUB ──► PC 2  (receives)
                ──► PC 3  (receives — unneeded traffic!)
                ──► PC 4  (receives — unneeded traffic!)
                ──► All other ports get the data

Advantages

• Low cost — cheapest way to connect multiple devices
• Easy to set up — no configuration required
• Works well for very small networks (2-3 devices)

Disadvantages

• No filtering — sends data to ALL ports (wastes bandwidth)
• Large collision domain — all devices share the same bandwidth
• No security — every device sees all traffic
• Half-duplex — can only send or receive at one time
• Performance drops — more devices = more collisions

Hubs are legacy devices. CCNA focuses on switches, not hubs. However, understanding hubs helps explain why switches were invented.

4. Bridge — Connecting and Filtering Traffic Between Two Network Segments

Bridge is a network device that connects two separate network segments and filters traffic between them based on MAC addresses. It operates at Layer 2 (Data Link) and helps reduce collisions.

   ┌───────────┐          ┌───────────┐
   │ Segment A │          │ Segment B │
   │           │          │           │
   │  ┌────┐   │          │  ┌────┐   │
   │  │ PC1│   │          │  │ PC3│   │
   │  └────┘   ├──────────┤  └────┘   │
   │  ┌────┐   │  Bridge  │  ┌────┐   │
   │  │ PC2│   │          │  │ PC4│   │
   │  └────┘   │          │  └────┘   │
   └───────────┘          └───────────┘

   PC1 to PC2  → Traffic stays in Segment A (bridge blocks it)
   PC1 to PC3  → Bridge forwards traffic to Segment B

How a Bridge works:

1. Bridge starts with empty MAC table
2. PC1 (MAC: AA) sends data → Bridge learns "AA is on Port 1"
3. If data is for PC2 (same segment) → Bridge blocks it (filtering)
4. If data is for PC3 (other segment) → Bridge forwards it
5. Bridge builds MAC table over time

Advantages

• Reduces collisions — segments collision domains
• Filters traffic — data only crosses the bridge if needed
• Extends network — connects two separate LANs
• Learns MAC addresses — builds table dynamically

Disadvantages

• Slow — processes each frame (store-and-forward)
• Only 2 ports — can only connect 2 segments
• Replaced by switches — switches are multi-port bridges
• No broadcast filtering — broadcasts still pass through

A Switch is essentially a multi-port bridge. The bridge concept is important to understand how switches learn MAC addresses.

5. Switch — The Intelligent Core Device That Forwards Data to the Right Destination

Switch is an intelligent network device that connects multiple devices within a LAN and forwards data only to the specific destination device using MAC addresses. It operates at Layer 2 (Data Link) and is the core device in modern networks.

                    ┌──────┐
                    │ PC 1 │
                    └──┬───┘
                       │
    ┌──────┐    ┌──────┼──────┐    ┌──────┐
    │ PC 2 │────│   SWITCH    │────│ PC 3 │
    └──────┘    └──────┼──────┘    └──────┘
                       │
                    ┌──┴───┐
                    │ PC 4 │
                    └──────┘

   PC1 to PC4  →  Data goes directly from Port 1 to Port 4
                   Other ports are NOT affected

How a Switch works:

1. Switch starts with empty MAC address table
2. PC1 sends data to PC3
3. Switch records "PC1 is on Port 1" in its MAC table
4. If PC3's MAC is unknown → Switch floods to all ports (except Port 1)
5. PC3 responds → Switch records "PC3 is on Port 3"
6. Next time PC1 sends to PC3 → Switch forwards directly to Port 3 only

Switch vs Hub — Same scenario:

HUB:    PC1 ──► HUB ──► PC2, PC3, PC4, PC5 (all get data — waste)
SWITCH: PC1 ──► SWITCH ──► PC3 (only destination gets data — efficient)

Types of Switches:

Advantages

• Reduces collisions — each port is a separate collision domain
• Efficient — sends data only to the destination device
• Full-duplex — can send and receive simultaneously
• High speed — supports 1 Gbps, 10 Gbps, even 100 Gbps
• Scalable — connect hundreds of devices
• MAC learning — automatically learns which device is on which port

Disadvantages

• Cost — more expensive than hub (but worth it)
• Complexity — managed switches require configuration
• Broadcast traffic — broadcasts still reach all ports (broadcast domain)
• ARP overhead — switches rely on ARP for MAC discovery

Switching is a major topic in CCNA. You need to understand MAC address tables, VLANs, STP, and trunking.

6. Router — Connecting Different Networks and Routing Traffic Across the Internet

Router is a network device that connects two or more different networks and forwards data packets between them based on IP addresses. It operates at Layer 3 (Network Layer) and is responsible for routing traffic across the internet.

              ┌──────────────────────────────────┐
              │           INTERNET               │
              └──────────┬───────────┬───────────┘
                         │           │
                   ┌─────┴─────┐ ┌───┴────────┐
                   │  Router   │ │  Router    │
                   │   (HQ)    │ │ (Branch)   │
                   └─────┬─────┘ └─────┬──────┘
                         │              │
                   ┌─────┴─────┐  ┌─────┴──────┐
                   │  Switch   │  │   Switch   │
                   └─────┬─────┘  └─────┬──────┘
                         │              │
                   ┌─────┴─────┐  ┌─────┴──────┐
                   │  PC Farm  │  │  PC Lab    │
                   └───────────┘  └────────────┘

How a Router works:

PC1 (192.168.1.10) sends data to Server (203.0.113.5):

1. PC1 checks: Is destination on the same network? No.
2. PC1 sends data to its default gateway (Router)
3. Router checks its routing table:
   - 192.168.1.0/24  → Local network (out port 1)
   - 203.0.113.0/24  → Next hop: 10.0.0.2 (out port 2)
4. Router forwards packet to the next-hop router
5. Eventually reaches the destination server

Routing Table Example:

Advantages

• Connects different networks — essential for internet connectivity
• Finds best path — uses routing protocols (OSPF, EIGRP, BGP)
• Filters traffic — can block unwanted traffic using ACLs
• Broadcast control — does not forward broadcasts between networks
• NAT/PAT — allows multiple devices to share one public IP

Disadvantages

• Complex configuration — requires networking knowledge
• Higher latency — processing packets takes time (compared to switch)
• Cost — enterprise routers are expensive
• Slower than switches — routers process more header information

Routing is the core of CCNA. You need to understand static routing, OSPF, and how routers build their routing tables.

7. Access Point (AP) — Providing Wireless WiFi Connectivity to Wired Networks

Access Point (AP) is a network device that allows wireless devices (WiFi) to connect to a wired network. It acts as a bridge between the wired Ethernet network and wireless clients.

                    ┌──────────────────┐
                    │   INTERNET       │
                    └────────┬─────────┘
                             │
                    ┌────────┴─────────┐
                    │      Router      │
                    └────────┬─────────┘
                             │
                    ┌────────┴─────────┐
                    │      Switch      │
                    └────────┬─────────┘
                             │
                    ┌────────┴─────────┐
                    │  Access Point    │
                    │  (WiFi)          │
                    └────────┬─────────┘
                             │
                    WiFi Signals (2.4 GHz / 5 GHz)
                             │
             ┌───────────────┼───────────────┐
             │               │               │
         ┌───┴───┐      ┌────┴────┐      ┌───┴───┐
         │Phone  │      │ Laptop  │      │Tablet │
         └───────┘      └─────────┘      └───────┘

Standalone vs Controller-based AP:

Advantages

• Mobility — devices can move freely within range
• Easy expansion — add users without cabling
• Supports many devices — modern APs handle 50-100+ clients
• Dual-band — operates on 2.4 GHz (better range) and 5 GHz (better speed)

Disadvantages

• Interference — affected by walls, other WiFi networks, microwaves
• Security concerns — wireless signals can be intercepted (use WPA3)
• Slower than wired — half-duplex, shares bandwidth among all clients
• Range limitation — requires multiple APs for large areas

Wireless networking is covered in CCNA. Key topics: SSID, WPA3, roaming, channel selection, and WLC configuration.

8. Modem — Converting Digital Signals to Connect Your Network to the ISP

Modem (Modulator-Demodulator) is a device that converts digital signals from a computer into analog signals for transmission over telephone or cable lines, and vice versa. It connects your local network to your Internet Service Provider (ISP).

    ┌──────────┐    Digital    ┌─────────┐    Analog    ┌──────────┐
    │  Router  │◄─────────────►│  Modem  │◄────────────►│   ISP    │
    │ (LAN)    │    Ethernet   │         │   Coaxial/   │(Internet)│
    └──────────┘               └─────────┘   DSL/Fiber  └──────────┘

    Digital:  101010 (Computer language)
    Analog:   ~~~~~~~~ (Signal traveling over wires)
    Modem converts between the two

Types of Modems:

In modern home routers, the Modem is often built into the same box (e.g., a cable modem/router combo).

Advantages

• Connects to ISP — essential for internet access
• Various types — works with DSL, cable, fiber
• Simple — plug and play in most cases

Disadvantages

• Speed limited by ISP — modem can only go as fast as the ISP plan
• Single device — one modem usually serves one connection
• Security risk — must be configured properly (or use a separate firewall)
• Legacy types are slow — dial-up is extremely slow

Modems are less emphasized in CCNA. The focus is on connecting to the WAN via routers. However, understanding DSL and Cable technologies is useful.

9. Gateway — Translating Protocols Between Different Types of Networks

Gateway is a network device that connects two networks using different protocols and translates data between them. It operates at multiple OSI layers and can act as an entry/exit point between networks.

    ┌──────────────┐          ┌──────────────┐
    │  LAN Network │          │  WAN/Internet │
    │ (TCP/IP)     │◄────────►│ (Different    │
    │              │  Gateway │   Protocol)   │
    └──────────────┘          └──────────────┘

    Example: A router configured as a gateway between your
    home network and the internet.

    ┌─────────────────────────────────────────────────────┐
    │  Default Gateway = The router that connects your    │
    │  LAN to other networks (usually the internet)       │
    └─────────────────────────────────────────────────────┘

Gateway vs Router:

In home networking, the router acts as the default gateway. The terms are often used interchangeably, but technically a gateway translates protocols, while a router forwards packets.

Advantages

• Connects different networks — enables communication between incompatible systems
• Default gateway — essential for any device to reach other networks
• Protocol translation — allows legacy systems to communicate with modern networks

Disadvantages

• Single point of failure — if gateway goes down, devices cannot reach external networks
• Bottleneck — all outgoing traffic passes through the gateway
• Complex — protocol translation requires processing power and configuration

The "default gateway" concept is critical in CCNA. Every device that needs to communicate outside its own network must have a default gateway configured.

10. Firewall — Protecting Your Network by Filtering Unauthorized Traffic

Firewall is a network security device that monitors and controls incoming and outgoing traffic based on predetermined security rules. It creates a barrier between a trusted internal network and untrusted external networks (like the internet).

    ┌─────────────────────────────────────────────────────┐
    │                   INTERNET                          │
    │                (Untrusted)                          │
    └──────────────────────┬──────────────────────────────┘
                           │
                           ▼
                   ┌───────────────┐
                   │   FIREWALL    │ ← Blocks bad traffic
                   │   (Security)  │ ← Allows good traffic
                   └───────┬───────┘
                           │
                           ▼
                   ┌───────────────┐
                   │  LAN Network  │
                   │  (Trusted)    │
                   └───────────────┘

    Firewall Rules Example:
    ✓ Allow HTTP/HTTPS traffic from inside to outside
    ✓ Allow responses to internal requests
    ✗ Block incoming SSH from outside
    ✗ Block known malicious IP addresses

Types of Firewalls:

Stateful Inspection Explained:

1. Internal user requests google.com (outbound — ALLOWED)
2. Firewall records: "192.168.1.10:54321 → google.com:80 (ACTIVE)"
3. Google responds → Firewall sees response matches recorded state → ALLOWED
4. External attacker tries to connect to 192.168.1.10:22 →
   Firewall checks: "Is there a matching outbound request?" → No → BLOCKED

Advantages

• Network security — first line of defense against attacks
• Traffic control — allows or blocks traffic based on rules
• Logging & monitoring — records connection attempts
• Prevents unauthorized access — blocks hackers, malware
• NAT/PAT support — hides internal IP addresses

Disadvantages

• Can slow down traffic — deep packet inspection takes processing power
• Complex configuration — poorly configured firewalls can block legitimate traffic
• Not enough alone — needs antivirus, IDS/IPS for complete security
• Cannot block internal threats — if an attack originates from inside, firewall may not help

CCNA covers Access Control Lists (ACLs) which are the basic form of packet filtering on Cisco routers. NGFW concepts are covered in higher-level Cisco certifications.

Comparison Table

Exercises

Exercise 1: Identify the Device

Exercise 2: Switch vs Hub

A small office currently uses a Hub to connect 8 computers. They are experiencing slow speeds because when one computer sends data, all others receive the traffic.

Your task: Explain in 3-4 sentences why upgrading to a Switch would solve their problem. Mention collision domain, filtering, and performance in your answer.

Exercise 3: Design a Small Business Network

A small business has:

• 20 desktop computers (need wired connection)
• 15 laptops (need WiFi)
• 1 printer (wired)
• 1 internet connection (fiber, provided by ISP with an ONT modem)

Your task: List all the network devices needed to set up this network. Explain in 2-3 sentences how they should be connected (draw a simple text diagram if you can).
