Subnetting — Subnet Masks, Binary, Calculations & Practice

Topics: Subnet Masks | Binary | CIDR | Host Calculation | Network Calculation | Broadcast Address | Practice Examples | Subnetting Exercises

Table of Contents

1. What is Subnetting?
2. Binary for Subnetting
3. Subnet Masks & CIDR in Depth
4. Network Portion vs Host Portion
5. The AND Operation
6. The Three Key Addresses of Every Subnet
7. Block Size Method (256 − Mask)
8. Finding the Network ID
9. Finding the Broadcast Address
10. Calculating the Host Range
11. Usable Hosts Formula
12. Borrowing Bits — Creating Subnets
13. Building a Subnet Table
14. VLSM — Variable-Length Subnet Masks
15. Point-to-Point /30 Links
16. Worked Examples (5 Problems)
17. Practice Exercises (10 Problems)
18. Subnetting Cheat Sheet

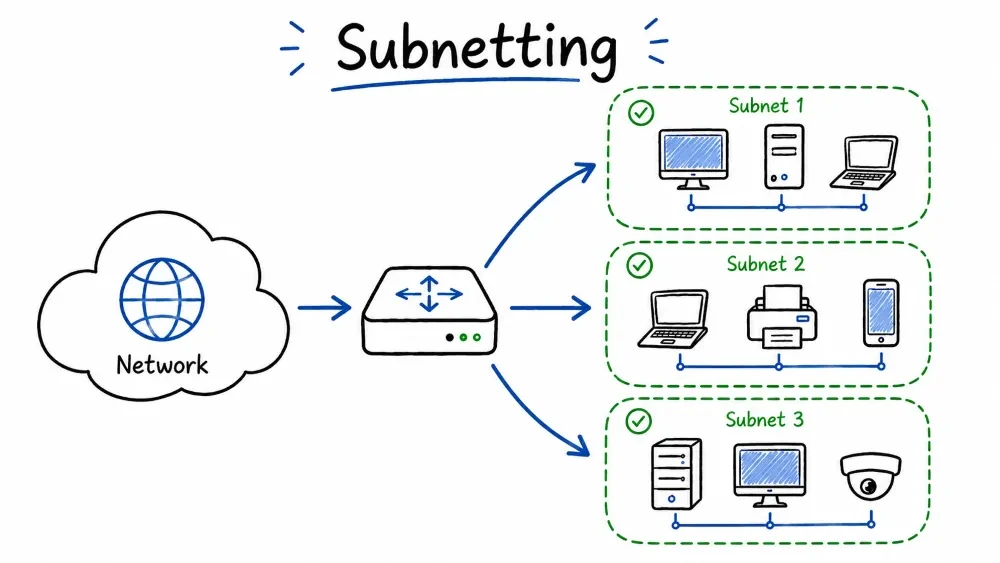

What is Subnetting?

Subnetting = dividing one large network into smaller, manageable pieces.

Why Subnet?

Four key benefits — less broadcast traffic, better security, logical organization, and efficient IP usage.

Visual

A diagram showing the difference between one flat network and three separated subnets.

FLAT (all together):
  ┌─────────────────────────────────┐
  │  192.168.1.0/24                 │
  │  254 devices in one broadcast   │
  │  domain — everyone sees every   │
  │  broadcast                      │
  └─────────────────────────────────┘

SUBNETTED (separated):
  ┌────────────┐ ┌──────────┐ ┌───────────┐
  │ .0/26      │ │ .64/26   │ │ .128/26   │
  │ Engineering│ │   HR     │ │   Sales   │
  │ 62 devices │ │62 devices│ │ 62 devices│
  └────────────┘ └──────────┘ └───────────┘
  Broadcasts isolated → less noise, more security

Binary for Subnetting

Subnetting is fundamentally binary math. You must be comfortable with the 8-bit octet.

The 8-Bit Octet

Eight bits with values 128, 64, 32, 16, 8, 4, 2, 1 — the building block of IP addressing.

Bit position:  7    6    5    4    3    2    1    0
Value:        128   64   32   16    8    4    2    1
              │    │    │    │    │    │    │    │
1s:            1    1    1    1    1    1    1    1  = 255
              1    1    1    1    1    0    0    0  = 248
              1    1    0    0    0    0    0    0  = 192

Key Subnet Mask Octets

The 8 possible decimal values in a subnet mask octet and their binary equivalents — memorize these.

Memorize these! Every subnet mask octet is one of these values.

Subnet Masks & CIDR in Depth

A subnet mask uses 1s (network) and 0s (host) to divide an IP; CIDR is shorthand for the number of 1s.

What is a Subnet Mask?

A subnet mask is a 32-bit number that divides an IP into:

• Network portion (where the mask has 1s)
• Host portion (where the mask has 0s)

CIDR ↔ Subnet Mask

The /N in CIDR equals the count of leading 1s in the subnet mask — /26 = 26 ones = 255.255.255.192.

CIDR is shorthand — the number after / = count of leading 1s in the mask:

CIDR: /26    →    26 ones + 6 zeros
Binary:      11111111.11111111.11111111.11000000
Decimal:     255.255.255.192

Essential Conversion Table

CIDR values /24 through /30 with their subnet masks and binary last-octet representation.

Tip: Count the 1s in the last octet and add 24:

Mask: 255.255.255.240 → 4 ones → 24 + 4 = /28
Mask: 255.255.252.0   → 6 ones in 3rd octet → 16 + 6 = /22

Network Portion vs Host Portion

The subnet mask determines the split:

/24:  NNNNNNNN.NNNNNNNN.NNNNNNNN.HHHHHHHH     (24 net, 8 host)
/25:  NNNNNNNN.NNNNNNNN.NNNNNNNN.NHHHHHHH     (25 net, 7 host)
/26:  NNNNNNNN.NNNNNNNN.NNNNNNNN.NNHHHHHH     (26 net, 6 host)
/27:  NNNNNNNN.NNNNNNNN.NNNNNNNN.NNNHHHHH     (27 net, 5 host)
/28:  NNNNNNNN.NNNNNNNN.NNNNNNNN.NNNNHHHH     (28 net, 4 host)
/29:  NNNNNNNN.NNNNNNNN.NNNNNNNN.NNNNNHHH     (29 net, 3 host)
/30:  NNNNNNNN.NNNNNNNN.NNNNNNNN.NNNNNNHH     (30 net, 2 host)

Example: 192.168.1.45/26

A visual demo showing how mask 255.255.255.192 splits the IP into 26 network bits and 6 host bits.

IP:    192.168.1.45     11000000.10101000.00000001.00101101
Mask:  255.255.255.192  11111111.11111111.11111111.11000000
                                                    ╔══╗╔══════╗
                                                    ║Net║║ Host ║
                                                    ╚══╝╚══════╝

The AND Operation

A binary operation (1 AND 1 = 1, else 0) that routers use to determine the network ID from an IP and mask.

Routers use bitwise AND to find which network an IP belongs to:

AND Rule:  1 AND 1 = 1  (everything else = 0)

Example

ANDing IP 192.168.1.45 with mask 255.255.255.192 gives network ID 192.168.1.0 by zeroing the host bits.

IP:      192.168.1.45   11000000.10101000.00000001.00101101
Mask:    255.255.255.192 11111111.11111111.11111111.11000000
AND ──────────────────────────────────────────────────────────
Network: 192.168.1.0    11000000.10101000.00000001.00000000
                                                        ↑  host bits zeroed

Why This Matters

Two devices are on the same subnet if ANDing with the mask gives the same result:

Device A: 192.168.1.45 AND 255.255.255.192 = 192.168.1.0
Device B: 192.168.1.67 AND 255.255.255.192 = 192.168.1.64
                      ↑ Different → They need a router!

The Three Key Addresses of Every Subnet

Network ID (first, reserved), Broadcast (last, reserved), and Usable Host Range (everything between — assignable to devices).

192.168.1.0     ← Network ID (reserved)
192.168.1.1     ← First usable host
192.168.1.2
...
192.168.1.254   ← Last usable host
192.168.1.255   ← Broadcast (reserved)
                    └── 256 TOTAL − 2 RESERVED = 254 USABLE

Block Size Method (256 − Mask)

The fundamental formula for subnetting — block size = 256 minus the mask value in the interesting octet. The block size equals the address count per subnet.

Formula

Block Size = 256 − Subnet Mask Value in the Interesting Octet

The interesting octet is where the mask value is not 255 and not 0.

Examples

Common block sizes — /26 = 64, /27 = 32, /28 = 16, /29 = 8, /30 = 4 — showing the interesting octet.

Finding the Network ID

The first address of a subnet — found by taking the largest multiple of the block size that is ≤ the IP's octet value.

Method: Block Size (Fast)

Step-by-step — find the interesting octet, compute block size, then identify the largest multiple ≤ the target value.

1. Find the interesting octet (mask ≠ 255, ≠ 0)
2. Block size = 256 − mask value in that octet
3. Network ID = largest multiple of block size ≤ the IP's octet value

Examples

Practical examples finding network IDs for /28, /26, /22, and /20 prefixes.

Find network ID of 192.168.1.45/28:

/28 → 255.255.255.240 → 4th octet interesting
Block = 256 − 240 = 16
Multiples: 0, 16, 32, 48, 64...
45 is between 32 and 48 → largest ≤ 45 = 32
Network ID: 192.168.1.32

More:

Finding the Broadcast Address

The last address of a subnet — found by adding (Block Size − 1) to the Network ID in the interesting octet.

Formula

Broadcast = (Network ID + Block Size) − 1 — it's always one less than the next network's ID.

Broadcast = (Network ID + Block Size) − 1

Examples

Broadcast calculations for /28, /26, /22, and /20 subnets.

Binary View

In binary, the broadcast address has all host bits set to 1.

Network ID: 192.168.1.32  11000000.10101000.00000001.00100000
Set host bits to 1:
Broadcast:  192.168.1.47  11000000.10101000.00000001.00101111

Calculating the Host Range

The usable IP addresses — from Network ID + 1 to Broadcast − 1.

Formula

First usable = Network ID + 1, Last usable = Broadcast − 1.

First usable = Network ID + 1
Last usable  = Broadcast − 1

Examples

Host ranges for /28, /26, /22, and /20 subnets.

Full Walkthrough: 192.168.1.67/27

A complete step-by-step example — from IP to block size to network ID to broadcast to host range.

Step 1: /27 = 255.255.255.224 → block = 256 − 224 = 32
Step 2: Multiples: 0, 32, 64, 96... 67 → 64
Step 3: Network ID = 192.168.1.64
Step 4: Next network = 192.168.1.96 → Broadcast = 95
Step 5: Range = 192.168.1.65 – 192.168.1.94

✓ Network:  192.168.1.64
✓ Range:    192.168.1.65 – .94
✓ Broadcast: 192.168.1.95
✓ Total:    32 addresses, 30 usable

Usable Hosts Formula

Usable hosts = 2^(host bits) − 2 — subtract 2 for the Network ID and Broadcast.

Formula

Usable hosts = 2^(32 − CIDR) − 2. Each host bit doubles the address count.

Usable hosts = 2^(host bits) − 2

Host bits = 32 − CIDR.

Why −2?

Two addresses per subnet are always reserved — the Network ID (first) and the Broadcast (last).

Total addresses    = 2^(host bits)
Network ID         (−1)
Broadcast          (−1)
────────────────────────
Usable             = Total − 2

Borrowing Bits — Creating Subnets

Taking bits from the host portion to create additional network bits — more subnets, fewer hosts per subnet.

Concept

Each bit borrowed from host doubles the subnet count but halves the hosts per subnet.

To create more subnets, borrow bits from the host portion:

Original /24:
  NNNNNNNN.NNNNNNNN.NNNNNNNN.HHHHHHHH     (1 subnet, 254 hosts)

Borrow 3 bits → /27:
  NNNNNNNN.NNNNNNNN.NNNNNNNN.SSSHHHHH     (8 subnets, 30 hosts each)
                            │││
                            └┴┴── subnet bits (borrowed from host)

The Two Formulas

Subnets created = 2^(borrowed bits). Hosts per subnet = 2^(remaining host bits) − 2.

How Many Bits to Borrow?

A decision table — how many bits to borrow for 2 to 64 subnets and the resulting CIDR and hosts per subnet.

Building a Subnet Table

A table listing all subnets with their network IDs, host ranges, and broadcast addresses — network IDs are block size apart.

Example: 192.168.1.0/24 → 4 subnets

A /24 split into 4 × /26 subnets — block size 64, 62 hosts each.

Original: /24, need 4 subnets → borrow 2 → /26
Mask:     255.255.255.192
Block:    64
Subnets:  4
Hosts:    62 each

Notice: Network IDs are exactly block size (64) apart: 0, 64, 128, 192.

VLSM — Variable-Length Subnet Masks

A subnetting technique that gives each subnet exactly the size it needs — eliminates waste by using different prefix lengths.

The Problem with Fixed-Length

FLSM allocates the same size to every subnet — wasteful when subnets have different host requirements.

Fixed-length (FLSM) wastes addresses — all subnets get the same size:

FLSM: All /28 → 14 hosts each
  Dept A needs 50 hosts → Not enough
  Dept B needs 2 hosts  → 12 wasted

VLSM Solution

Each subnet gets exactly the size it needs:

Dept A (50 hosts) → /26 (62 hosts)   ✓
Dept B (2 hosts)  → /30 (2 hosts)    ✓

VLSM Rules

Three rules — assign largest subnets first, start where previous ends, and choose the smallest prefix that fits.

Minimum Prefix Table

Quick reference — given N hosts, use CIDR X which provides Y usable addresses.

Point-to-Point /30 Links

A /30 subnet provides exactly 2 usable IPs — perfect for directly connecting two routers.

Point-to-point links (routers connected directly) only need 2 addresses — one per router interface.

/30 = 255.255.255.252, block = 4, 2 usable hosts → perfect!

Link R1↔R2:  10.0.0.0/30    .1 (R1)    .2 (R2)    broadcast .3
Link R2↔R3:  10.0.0.4/30    .5 (R2)    .6 (R3)    broadcast .7
Link R3↔R4:  10.0.0.8/30    .9 (R3)    .10 (R4)   broadcast .11

/31 (RFC 3021) is even more efficient — no network/broadcast overhead at all — but requires modern router support.

Worked Examples (5 Problems)

Example 1 — Basic /24 Splitting (FLSM)

Split 192.168.1.0/24 into 4 equal subnets using /26 — yields 62 hosts per subnet.

Problem: Split 192.168.1.0/24 into 4 equal subnets.

Borrow 2 → /26, mask 255.255.255.192, block 64, 62 hosts/subnet

Subnet 0:  192.168.1.0/26     (.1 – .62)     broadcast .63
Subnet 1:  192.168.1.64/26    (.65 – .126)   broadcast .127
Subnet 2:  192.168.1.128/26   (.129 – .190)  broadcast .191
Subnet 3:  192.168.1.192/26   (.193 – .254)  broadcast .255

✓ 4 subnets, 62 hosts each, all 256 addresses used

Example 2 — VLSM for Departments

VLSM example — 4 departments with different host requirements, assigned from largest to smallest using /26, /27, /28, /29.

Problem: 192.168.10.0/24 → Departments:

Unused: 192.168.10.120 – .255 (136 addresses).
Compare to FLSM: 4 × /26 = 256 used, 158 wasted. VLSM wastes only 22.

Example 3 — Class B Subnetting

Class B network 172.20.0.0/16 subnetted into /23 subnets — 128 subnets with 510 hosts each.

Problem: 172.20.0.0/16 → subnets with ≥ 500 hosts each.

500 hosts → 2⁹−2 = 510 → needs /23
/16 → /23 = 7 bits borrowed → 2⁷ = 128 subnets
Mask: 255.255.254.0, Block: 2 (3rd octet), Hosts: 510

Subnet 0:    172.20.0.0/23     (.0.1 – .1.254)
Subnet 1:    172.20.2.0/23     (.2.1 – .3.254)
Subnet 2:    172.20.4.0/23     (.4.1 – .5.254)
...
Subnet 127:  172.20.254.0/23   (.254.1 – .255.254)

Example 4 — Point-to-Point /30

Connecting 3 routers with /30 links using 10.0.0.0/24 — 4 addresses per link, 2 usable.

Problem: Connect 3 routers in chain using 10.0.0.0/24.

Link R1↔R2:  10.0.0.0/30     .1 (R1)   .2 (R2)   bcast .3
Link R2↔R3:  10.0.0.4/30     .5 (R2)   .6 (R3)   bcast .7

Total used: 8 addresses — 2 usable. Much better than /24 per link!

Example 5 — Real-World Network Design

A complete VLSM design using 192.168.0.0/22 — HQ, two branches, VPN tunnels, and future reservation.

Problem: 192.168.0.0/22 → HQ (200 hosts), Branch A (50), Branch B (25), 2 VPN tunnels, future /24 reserved.

Reserve future: 192.168.0.0/24
HQ (/24):       192.168.1.0/24     (1.1 – 1.254)
Branch A (/26): 192.168.2.0/26     (2.1 – 2.62)
Branch B (/27): 192.168.2.64/27    (2.65 – 2.94)
Tunnel A (/30): 192.168.2.96/30    (2.97, 2.98)
Tunnel B (/30): 192.168.2.100/30   (2.101, 2.102)
Remaining: 192.168.2.104 – 192.168.3.255

Practice Exercises (10 Problems)

Test your subnetting skills with 10 problems — basic to advanced, with answers at the end.

Exercise 1 — Basic Calculation

Find network ID, broadcast, host range for 192.168.15.87/27.

Exercise 2 — FLSM Subnet Design

Split 192.168.50.0/24 into 8 equal subnets. List all 8.

Exercise 3 — VLSM

192.168.100.0/24 → IT (45 hosts), Sales (20), R&D (10), Guest (2). Show CIDR, range, unused space.

Exercise 4 — Class A

10.0.0.0/8 → split into /16 subnets. How many? 5th subnet ID? Hosts per /16?

Exercise 5 — Point-to-Point

10 point-to-point links using 172.20.0.0/24. Prefix? 10th link ID? Total addresses consumed?

Exercise 6 — Same Subnet?

Determine whether pairs of IPs lie on the same subnet given their subnet mask.

Exercise 7 — Find the Mistake

Identify the problem in an overlapping subnet design.

192.168.1.0/24
  Dept A: 192.168.1.0/25    (.1 – .126)
  Dept B: 192.168.1.64/26   (.65 – .126)  ← what's wrong?
  Dept C: 192.168.1.128/27  (.129 – .158)

Exercise 8 — Minimum Prefix

Find the smallest CIDR that supports each host count.

Exercise 9 — Design Challenge

172.20.0.0/16 → HQ (1500), DC (500), Branch1 (200), Branch2 (100), 4 P2P links. Design VLSM.

Exercise 10 — Quick Fire

8 rapid-fire questions to test your subnetting speed — answer each in under 10 seconds.

Subnetting Cheat Sheet

Quick reference — the 6-step method, essential CIDR table, and key formulas all in one place.

6-Step Method

The complete subnetting procedure — from CIDR to mask to block size to network ID to broadcast to host range.

1. CIDR → subnet mask
2. Find interesting octet (mask ≠ 255, ≠ 0)
3. Block size = 256 − mask value in interesting octet
4. Network ID = largest multiple of block size ≤ IP octet value
5. Broadcast = (Network ID + block size) − 1
6. Host range = Network ID + 1 → Broadcast − 1

Essential Table

The 7 most important CIDR values — memorize these for fast subnetting.

Formulas

All four essential subnetting formulas in one table.

Answers

Complete solutions to all 10 exercises — expand to check your work.

HQ (1500):     /21 → 172.20.0.0/21     (.0.1 – .7.254)
DC (500):      /22 → 172.20.8.0/22     (.8.1 – .11.254)
Branch1 (200): /24 → 172.20.12.0/24    (.12.1 – .12.254)
Branch2 (100): /25 → 172.20.13.0/25    (.13.1 – .13.126)
P2P 1–4:       /30 → .13.128, .132, .136, .140
