What is the OSI Model?

What is the OSI Model?

A conceptual framework that divides network communication into 7 distinct layers — each with specific functions, protocols, and responsibilities.

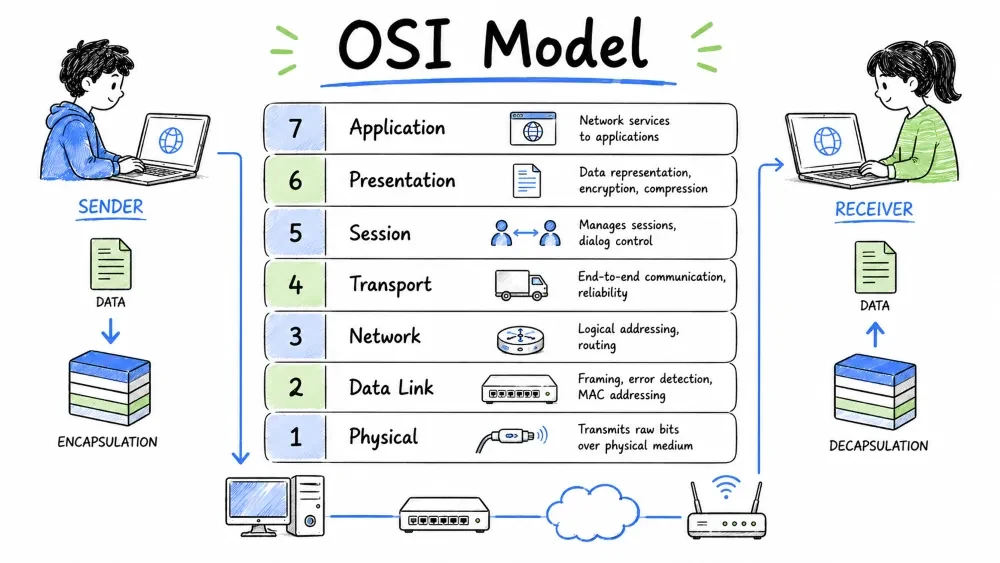

The OSI (Open Systems Interconnection) Model is a conceptual framework used to understand how data communication occurs between devices on a network. It divides the entire networking process into 7 distinct layers, with each layer responsible for specific functions.

┌──────────────────────────────────────────────────┐
│              OSI MODEL — 7 Layers                │
├──────────────────────────────────────────────────┤
│  7. Application Layer     │  (User Interaction)  │
├───────────────────────────┤                      │
│  6. Presentation Layer    │  (Data Formatting)   │
├───────────────────────────┤                      │
│  5. Session Layer         │  (Session Mgmt)      │
├───────────────────────────┤                      │
│  4. Transport Layer       │  (End-to-End)        │
├───────────────────────────┤                      │
│  3. Network Layer         │  (Routing)           │
├───────────────────────────┤                      │
│  2. Data Link Layer       │  (Framing)           │
├───────────────────────────┤                      │
│  1. Physical Layer        │  (Bits/Signals)      │
└──────────────────────────────────────────────────┘

Why Do We Need the OSI Model?

The OSI model solves vendor incompatibility, simplifies troubleshooting, enables modular technology upgrades, and makes networking easier to teach and learn.

Problem	Solution via OSI Model
Different vendors make incompatible devices	Standardized layers ensure interoperability
Network troubleshooting is complex	Each layer has clear responsibilities
New technologies emerge constantly	Layers abstract changes — add new tech in one layer without affecting others
Teaching networking is hard	Breaking into 7 layers makes learning step-by-step possible

History & Origin

Developed by ISO between 1977-1984 — the OSI model aimed to create a universal networking standard for multi-vendor interoperability.

1977–1984: Developed by the International Organization for Standardization (ISO)
ISO Standard: ISO/IEC 7498-1
Purpose: Create a universal standard for network communication so that systems from different manufacturers could communicate
Fun fact: The OSI model was published around the same time as TCP/IP. While TCP/IP won the "protocol war," the OSI model won as the teaching & reference model

The 7 Layers Overview

A visual breakdown of all 7 OSI layers from Application to Physical, their functions, data units, and protocols.

Each layer serves its upper layer and provides services to the layer below.

Layer	Name	Function	Data Unit	Devices / Protocols
7	Application	User-facing apps, network services	Data	HTTP, FTP, DNS, SMTP
6	Presentation	Encryption, compression, data formatting	Data	SSL/TLS, JPEG, GIF, ASCII
5	Session	Session creation, maintenance, termination	Data	NetBIOS, RPC, PPTP
4	Transport	End-to-end delivery, reliability, flow control	Segment	TCP, UDP
3	Network	Logical addressing, routing, path selection	Packet	IP, ICMP, ARP, Routers
2	Data Link	Framing, MAC addressing, error detection	Frame	Ethernet, Switch, MAC
1	Physical	Bit transmission, signals, cables	Bits	Hub, Repeater, Cable

Quick Mnemonic

Easy memory aids to recall the 7 layers in correct order from top to bottom or bottom to top.

Remember the 7 layers from top to bottom or bottom to top:

Direction	Mnemonic	Meaning
Top → Bottom	All People Seem To Need Data Processing	Application → Physical
Bottom → Top	Please Do Not Throw Sausage Pizza Away	Physical → Application

How Data Flows — Encapsulation & Decapsulation

The process of adding headers as data moves down the layers (encapsulation) and removing headers as data moves up the layers (decapsulation).

When data travels from one device to another over a network, each layer adds its own header (and sometimes trailer) — this is called encapsulation. The receiving device strips headers layer by layer — this is decapsulation.

Encapsulation Process

The step-by-step addition of headers from each layer as application data travels down the OSI stack.

Sender Side (Encapsulation):

┌───────────────────────────────────────────────────┐
│                User Data (e.g. "Hello")           │
├───────────────────────────────────────────────────┤
│  Layer 7-5  │  AH  │         Data                 │
├─────────────┼──────┴──────────────────────────────┤
│  Layer 4    │  TH  │  AH  │       Data            │  ← Segment
├─────────────┼──────┴──────────────────────────────┤
│  Layer 3    │  NH  │ TH  │ AH  │    Data          │  ← Packet
├─────────────┼──────┴──────────────────────────────┤
│  Layer 2    │  FH  │ NH │ TH │ AH │ Data │ FT     │  ← Frame
├─────────────┼──────┴──────────────────────────────┤
│  Layer 1    │        010101101010...              │  ← Bits
└─────────────┴─────────────────────────────────────┘

AH = Application/Upper Header   TH = Transport Header
NH = Network Header             FH = Frame Header
FT = Frame Trailer

Key Insight: Each layer ONLY understands its own header — it reads its header, processes it, then passes the rest to the next layer.

PDU (Protocol Data Unit)

The specific name given to data at each OSI layer — Bits, Frames, Packets, Segments, and Data.

Layer	PDU Name
Application (7)	Data
Presentation (6)	Data
Session (5)	Data
Transport (4)	Segment (TCP) / Datagram (UDP)
Network (3)	Packet
Data Link (2)	Frame
Physical (1)	Bits

OSI Model vs TCP/IP Model

A comparison between the conceptual 7-layer OSI model and the practical 4-layer TCP/IP model used on the internet.

The TCP/IP model is the practical model used on the internet. The OSI model is the conceptual/reference model.

OSI Model                  TCP/IP Model
─────────                  ────────────
┌─────────────────┐       ┌─────────────────┐
│  Application    │       │                 │
│  Presentation   ├──────►│   Application   │
│  Session        │       │                 │
├─────────────────┤       ├─────────────────┤
│  Transport      ├──────►│   Transport     │
├─────────────────┤       ├─────────────────┤
│  Network        ├──────►│   Internet      │
├─────────────────┤       ├─────────────────┤
│  Data Link      ├──────►│   Network       │
│  Physical       │       │   Access        │
└─────────────────┘       └─────────────────┘

Feature	OSI Model	TCP/IP Model
Layers	7	4 (or 5)
Developed by	ISO	IETF
Year	1984	1970s
Usage	Reference/Teaching	Practical/Internet
Protocol focus	Protocol-independent	TCP/IP specific
Popularity	Learning & theory	Real-world networking

Why the OSI Model Matters in Cybersecurity

Each OSI layer has different security threats and defenses — understanding all 7 layers enables comprehensive "defense in depth."

Understanding the OSI model is critical for cybersecurity professionals because:

Security Concern	OSI Layer
Phishing / Web attacks	Application (L7)
Encryption / SSL stripping	Presentation (L6)
Session hijacking	Session (L5)
Port scanning / DoS	Transport (L4)
IP spoofing / Routing attacks	Network (L3)
MAC spoofing / ARP spoofing	Data Link (L2)
Wireless jamming / Physical tampering	Physical (L1)

In cybersecurity, you secure each layer differently. A firewall at L4 won't stop an L7 SQL injection attack. Defense in depth means securing ALL 7 layers.

Terms & Concepts

Key terminology used across the OSI model — encapsulation, decapsulation, PDU, protocols, and interfaces.

Term	Definition
Encapsulation	Adding headers as data moves down the layers
Decapsulation	Removing headers as data moves up the layers
PDU	Protocol Data Unit — data at each layer has a specific name
Peer-to-Peer Communication	Each layer communicates with its counterpart on the other device
Interface	The boundary between two adjacent layers
Service	What a layer provides to the layer above
Protocol	A set of rules for communication at a specific layer

Summary & Quick Revision

A complete cheat sheet summarizing all 7 OSI layers, their functions, protocols, and mnemonics for quick recall.

┌─────────────────────────────────────────────────────────┐
│                   OSI MODEL CHEAT SHEET                 │
├─────────────────────────────────────────────────────────┤
│                                                         │
│  L7: APPLICATION ─── HTTP, DNS, SMTP, FTP, DHCP         │
│       ↑                                                 │
│  L6: PRESENTATION ── SSL/TLS, JPEG, MPEG, Encryption    │
│       ↑                                                 │
│  L5: SESSION ─────── NetBIOS, RPC, Session Mgmt         │
│       ↑                                                 │
│  L4: TRANSPORT ───── TCP (Reliable), UDP (Fast)         │
│       ↑                                                 │
│  L3: NETWORK ─────── IP, ICMP, Routers, Routing         │
│       ↑                                                 │
│  L2: DATA LINK ───── Ethernet, Switch, MAC, Frames      │
│       ↑                                                 │
│  L1: PHYSICAL ────── Cables, Hubs, Bits, Signals        │
│                                                         │
│  Mnemonic: All People Seem To Need Data Processing      │
│            Please Do Not Throw Sausage Pizza Away       │
└─────────────────────────────────────────────────────────┘

Practice Questions

Test your understanding of the OSI Model foundation with these review questions.

Q: How many layers does the OSI model have? Name them from top to bottom.
Q: What is meant by "encapsulation" in the OSI model?
Q: What is a PDU called at the Transport Layer? At the Network Layer?
Q: Which layer is responsible for routing and logical addressing?
Q: Why is the OSI model important for cybersecurity professionals?
Q: How is the OSI model different from the TCP/IP model?
Q: What does the mnemonic "All People Seem To Need Data Processing" help you remember?
Q: Name one real-world protocol for each layer.
