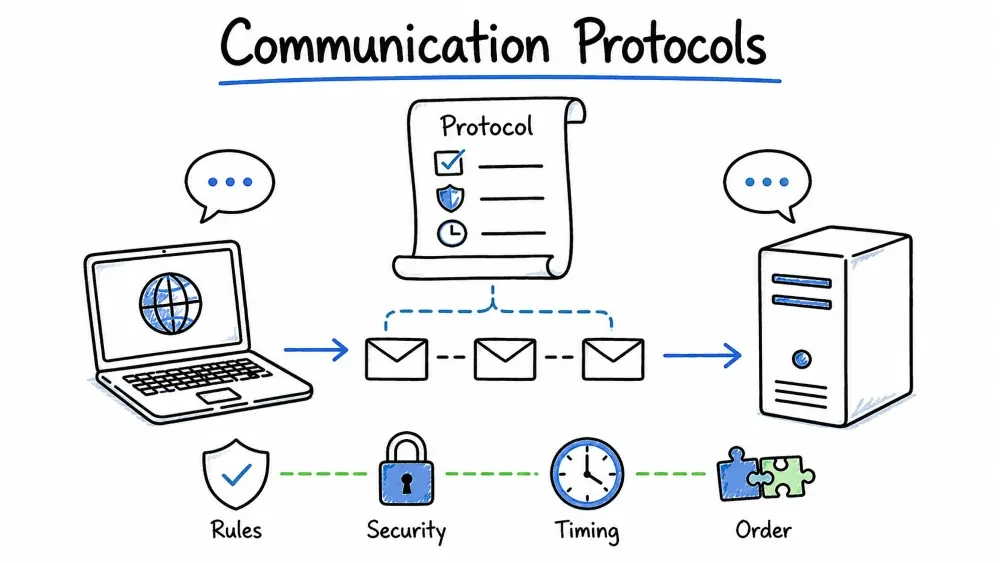

Communication Protocols — Core Protocols That Power the Internet

Category: Communication Protocols — These protocols govern how data is transmitted, routed, and addressed across networks. They form the fundamental building blocks of all network communication.

Table of Contents

1. HTTPS
2. TCP
3. UDP
4. BGP
5. ARP
6. IP
7. DHCP
8. DNS

1. HTTPS (Hypertext Transfer Protocol Secure)

What is HTTPS?

HTTPS is the secure version of HTTP (Hypertext Transfer Protocol). It encrypts all data exchanged between a web browser (client) and a web server using TLS (Transport Layer Security) — the successor to SSL (Secure Sockets Layer). Without HTTPS, all data travels in plain text and can be intercepted, read, or modified by anyone on the network path.

Insight: HTTPS is NOT a separate protocol — it is simply HTTP running over TLS. The "S" stands for "Secure."

How HTTPS Encryption Works

HTTPS uses a hybrid encryption model combining two types of cryptography:

1. Asymmetric Encryption (Public Key Cryptography)

• Server has a public key (shared with everyone) and a private key (kept secret).
• Used during the TLS handshake to exchange a shared symmetric key.
• Slow but solves the key distribution problem.

2. Symmetric Encryption (Shared Secret)

• After the handshake, both sides use the same session key.
• Used for the actual data transfer.
• Fast and efficient.

HTTPS Connection Flow — Step by Step

Client (Browser) Server (Website)
| |
|======== Step 1: TCP Handshake ======|
|--- SYN ---------------------------->|
|<-- SYN-ACK -------------------------|
|--- ACK ---------------------------->|
| |
|======== Step 2: TLS Handshake ======|
|--- ClientHello ------------------->| (1) Sends supported TLS version,
| (TLS 1.3, cipher suites, | cipher suites, random data
| random bytes) |
|<-- ServerHello --------------------| (2) Picks the highest mutual
| (chosen cipher suite, | TLS version & cipher
| session ID, certificate) |
|<-- Certificate --------------------| (3) Server sends its SSL/TLS
| (X.509 cert with public key) | certificate (issued by CA)
|<-- ServerHelloDone ----------------| (4) Server signals "done"
| |
|--- ClientKeyExchange -------------->| (5) Client generates pre-master
| (encrypted pre-master secret) | secret, encrypts with
| [Encrypted with server's pub key] | server's public key
| |
|--- ChangeCipherSpec --------------->| (6) Client: "From now on,
|--- Finished ----------------------->| I'll use encryption"
|<-- ChangeCipherSpec ----------------| (7) Server: "Me too!"
|<-- Finished ------------------------|
| |
|======== Step 3: Encrypted Data =====|
|<==== Encrypted HTTP Traffic =======>| (8) All traffic now encrypted
| (AES-256-GCM symmetric cipher) | with the shared session key

TLS 1.3 Handshake (Simplified — 1-RTT)

TLS 1.3 reduced the handshake from 2 round trips to just 1:

Client Server
| |
|--- ClientHello + Key Share ---------->| (Client guesses key exchange
| (TLS 1.3, supported ciphers, | algorithm and sends its share
| ECDHE key share) | immediately)
| |
|<-- ServerHello + Key Share + Certificate + Finished -|
| (chosen cipher, server key share, |
| certificate, authentication) |
| |
|--- Client Finished ------------------>|
|<==== Encrypted Application Data =====>|

Components of HTTPS Security

• SSL/TLS Certificate: Digital document binding a public key to an entity's identity.
• Certificate Authority (CA): Trusted third party that issues certificates (e.g., DigiCert, Let's Encrypt, GlobalSign).
• X.509 Standard: Defines the format of public key certificates.
• Certificate Chain: Root CA → Intermediate CA → Server Certificate → Client trust.

What HTTPS Protects Against

What HTTPS Does NOT Protect Against

• Phishing attacks: HTTPS only verifies the domain, not the site's legitimacy.
• Server-side vulnerabilities: If the server is hacked, HTTPS won't help.
• Malware: HTTPS cannot prevent malicious code from being served.
• DNS hijacking: If DNS is compromised, the certificate may not match.

HTTPS Adoption Statistics

• Over 95% of web traffic on Google Chrome is now HTTPS.
• Google uses HTTPS as a ranking signal (SEO boost).
• Browsers mark HTTP sites as "Not Secure" (Chrome starting 2018).

Practical: Setting Up HTTPS with Let's Encrypt

# Install Certbot
sudo apt install certbot python3-certbot-nginx

# Obtain a free SSL certificate
sudo certbot --nginx -d example.com -d www.example.com

# Auto-renewal (Let's Encrypt certs expire in 90 days)
sudo certbot renew --dry-run

Common HTTPS Issues

2. TCP (Transmission Control Protocol)

What is TCP?

TCP is a connection-oriented transport protocol that provides reliable, ordered, and error-checked delivery of a stream of bytes between applications running on hosts in an IP network. It is the backbone of most internet applications today.

Insight: TCP's job is to ensure that data sent from one application arrives completely, correctly, and in order at the destination application — even if the underlying network is unreliable.

TCP Header Structure

0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Source Port | Destination Port |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Sequence Number |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Acknowledgment Number |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Data | |C|E|U|A|P|R|S|F| |
| Offset| Rsrvd |W|C|R|C|S|S|Y|I| Window Size |
| | |R|E|G|K|H|T|N|N| |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Checksum | Urgent Pointer |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Options (variable length) |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Data |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

TCP Header Fields Explained

TCP Three-Way Handshake (Connection Establishment)

CLIENT (Active Open) SERVER (Passive Open)
| |
| State: CLOSED | State: LISTEN
| |
|========= Step 1: SYN ==============|
|--- SYN (SEQ=100) ----------------->| Client sends SYN with
| Flags: SYN=1 | initial sequence number = 100
| State: SYN_SENT |
| | State: SYN_RECEIVED
|========= Step 2: SYN-ACK ==========|
|<-- SYN + ACK (SEQ=300, ACK=101) ---| Server sends its own SYN
| Flags: SYN=1, ACK=1 | (SEQ=300) and ACKs client's
| | SYN (ACK=101 = next expected)
|========= Step 3: ACK ==============|
|--- ACK (SEQ=101, ACK=301) -------->| Client ACKs server's SYN
| Flags: ACK=1 | Connection ESTABLISHED
| State: ESTABLISHED | State: ESTABLISHED
| |

TCP Data Transfer

After the handshake, data transfer follows a pattern:

CLIENT SERVER
| |
|--- SEQ=101, 1000 bytes -------->| Client sends 1000 bytes
| |
|<-- ACK=1101 (cumulative ACK) ----| Server confirms all 1000 bytes
| | ("I expect byte 1101 next")
| |
|<-- SEQ=301, 500 bytes -----------| Server sends 500 bytes
| |
|--- ACK=801 --------------------->| Client confirms receipt
| |

Key Transfer Features:

• Cumulative ACKs: One ACK can confirm receipt of many segments.
• Sliding Window: Multiple segments can be sent before waiting for ACK.
• Maximum Segment Size (MSS): Typically 1460 bytes (MTU 1500 - IP 20 - TCP 20).

TCP Connection Termination (Four-Way Handshake)

CLIENT SERVER
| |
|--- FIN (SEQ=501) --------------->| Client: "I'm done sending"
| Flags: FIN=1 |
| State: FIN_WAIT_1 |
| | State: CLOSE_WAIT
|<-- ACK (SEQ=701, ACK=502) -------| Server: "Got it, but I'm still
| Flags: ACK=1 | sending data if needed"
| State: FIN_WAIT_2 |
| |
| (Server may still send data) | (Half-close state)
| |
|<-- FIN (SEQ=701, ACK=502) -------| Server: "OK now I'm done too"
| Flags: FIN=1, ACK=1 |
| | State: LAST_ACK
|--- ACK (SEQ=502, ACK=702) ------>| Client: "Acknowledged"
| State: TIME_WAIT (2MSL) | State: CLOSED
| |
| (Client waits 2*MSL before |
| fully closing to handle |
| delayed segments) |

TCP Flow Control — Sliding Window

TCP uses a sliding window mechanism to prevent a fast sender from overwhelming a slow receiver:

Sender Receiver
| |
|--- Segment 1 ------------->| Window = 3
|--- Segment 2 ------------->| (Receiver can buffer 3 segments)
|--- Segment 3 ------------->|
| |
|<-- ACK 4, Window = 3 ------| Receiver consumed 1-3, still has
| | room for 3 more
|--- Segment 4 ------------->|
|--- Segment 5 ------------->|
|--- Segment 6 ------------->|
| |
|<-- ACK 7, Window = 0 ------| Receiver: "Slow down! My buffer is full"
| | (Zero Window)
|--- Zero Window Probe ------>| Sender periodically checks if window
|<-- ACK 7, Window = 3 ------| has opened up
|--- Segment 7 ------------->|

TCP Congestion Control Algorithms

TCP has evolved several congestion control mechanisms:

Congestion Control States

cwnd
^
| Slow Start Congestion Avoidance
| (exponential) (linear/AIMD)
| _____________ _______________
| / \ / \
| / \ / \
| / \____/ \____
+---------------------------------------------------> Time

• Slow Start: cwnd doubles every RTT (exponential).
• Ssthresh (Slow Start Threshold): When cwnd >= ssthresh, switch to Congestion Avoidance.
• Congestion Avoidance: cwnd increases by 1 MSS per RTT (linear/AIMD).
• Fast Retransmit: If 3 duplicate ACKs, retransmit the lost segment immediately.
• Fast Recovery: Halve cwnd and ssthresh, then continue in Congestion Avoidance.

Common TCP Commands & Tools

# Check TCP connections
netstat -an | grep TCP
ss -tlnp # Modern alternative to netstat

# Capture TCP traffic
tcpdump -i eth0 tcp port 80
tcpdump -i eth0 'tcp[13] & 2 != 0' # Only SYN packets

# Check TCP parameters on Linux
sysctl net.ipv4.tcp_congestion_control
sysctl net.core.rmem_default
sysctl net.core.wmem_default

# Tuning TCP for performance
sysctl -w net.ipv4.tcp_rmem='4096 87380 16777216'
sysctl -w net.ipv4.tcp_wmem='4096 65536 16777216'

Common TCP Issues & Troubleshooting

3. UDP (User Datagram Protocol)

What is UDP?

UDP is a connectionless transport protocol that sends independent data units called datagrams without establishing a connection. It provides no guarantee of delivery, ordering, or error recovery — this makes it faster but less reliable than TCP.

Insight: UDP is the "fire and forget" protocol — you send data and hope it arrives. This simplicity is a feature, not a bug, for applications where speed matters more than reliability.

UDP Header Structure

The UDP header is remarkably simple — only 8 bytes (compared to TCP's 20-60 bytes):

0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Source Port | Destination Port |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Length | Checksum |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Data |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

UDP Header Fields

UDP vs TCP — Deep Comparison

When to Use UDP vs TCP

Choose UDP when: Choose TCP when:
 Real-time communication  Data integrity is critical
 Low latency is essential  You need guaranteed delivery
 Occasional loss is acceptable  Data must arrive in order
 You have simple request-response  You're transferring files
 Broadcast/multicast needed  Congestion control needed
 You implement reliability above  You don't want to implement
(e.g., QUIC, custom protocol) reliability yourself

Examples: Examples:
• VoIP / Video calls (RTP over UDP) • Web browsing (HTTP/TCP)
• Live streaming (YouTube/Twitch) • Email (SMTP/TCP, IMAP/TCP)
• Online gaming (twitch shooters) • File transfer (FTP/TCP)
• DNS queries • Database connections
• DHCP • SSH remote access
• SNMP monitoring • API calls
• TFTP (Trivial FTP) • Most REST/GraphQL APIs

UDP in Action: Gaming Example

Online games often use UDP because:

1. Player position updates — sending 60 updates/second. If one is lost, the next one arrives 16ms later. No point retransmitting old data.
2. Low latency — a TCP retransmission could add 100ms+ delay, making the game unplayable.
3. Application-level reliability — game developers implement custom reliability for critical events (e.g., "you shot the enemy").

Game Protocol Stack:

┌─────────────────────────────────────┐
│ Game Application │ (Custom logic)
├─────────────────────────────────────┤
│ Game Protocol Layer (custom) │ (Reliability for critical events)
├─────────────────────────────────────┤
│ UDP Header │ (Fast transport)
├─────────────────────────────────────┤
│ IP Header │ (Routing)
├─────────────────────────────────────┤
│ Ethernet Frame │ (Physical delivery)
└─────────────────────────────────────┘

Common Protocols Using UDP

UDP Commands & Tools

# Monitor UDP connections
netstat -anu
ss -unlp

# Capture UDP packets
tcpdump -i eth0 udp port 53

# Test UDP connectivity (using netcat)
nc -u -l 12345 # Server: listen on UDP 12345
nc -u hostname 12345 # Client: send data to UDP 12345

UDP Limitations

4. BGP (Border Gateway Protocol)

What is BGP?

BGP is the routing protocol of the internet. It is an Exterior Gateway Protocol (EGP) that exchanges routing and reachability information between Autonomous Systems (ASes) — networks operated by ISPs, cloud providers, large enterprises, and content providers.

Insight: Without BGP, the internet would not exist as we know it. BGP tells your ISP how to reach Google, Facebook, Netflix, or any other network on the planet.

BGP Architecture

┌─────────────────────┐
│ AS 15169 (Google) │
│ (iBGP internal) │
└──────────┬──────────┘
│ eBGP
│
┌────────────────────────────┼────────────────────────────┐
│ │ │
▼ ▼ ▼
┌──────────────────────┐ ┌──────────────────────┐ ┌──────────────────────┐
│ AS 174 (Cogent) │ │ AS 6453 (Tata) │ │ AS 2914 (NTT) │
│ Transit Provider │ │ Transit Provider │ │ Transit Provider │
└──────────────────────┘ └──────────────────────┘ └──────────────────────┘
│ │ │
└────────────────────────────┼────────────────────────────┘
│ eBGP
▼
┌─────────────────────┐
│ AS 32934 (Facebook) │
│ (iBGP internal) │
└─────────────────────┘

BGP Message Types

BGP operates with 4 message types:

BGP State Machine

┌─────┐
│ IDLE│ ← Start when admin enables BGP or peer resets
└──┬──┘
│ TCP connection initiated
▼
┌──────┐
│CONNECT│ → If TCP fails, go to ACTIVE
└──┬───┘
│ TCP established
▼
┌──────┐
│ACTIVE│ ← Retrying TCP connection
└──┬───┘
│ TCP established
▼
┌──────────┐
│OPEN SENT │ ← OPEN message sent
└────┬─────┘
│ OPEN received
▼
┌──────────┐
│OPEN CONFIRM│ ← Waiting for KEEPALIVE
└────┬─────┘
│ KEEPALIVE received
▼
┌──────────┐
│ESTABLISHED│ ← Routes exchanged via UPDATE messages
└──────────┘

BGP Path Attributes

BGP uses path attributes to make routing decisions. Each route advertisement carries these:

Well-Known Mandatory Attributes

Well-Known Discretionary Attributes

Optional Attributes

BGP Route Selection Algorithm

When BGP receives multiple paths to the same destination, it selects one best path using this decision process:

1. Prefer highest WEIGHT (Cisco proprietary, local to router)
2. Prefer highest LOCAL_PREF (Local preference, within AS)
3. Prefer locally originated routes (Network statements, redistributions)
4. Prefer shortest AS_PATH (Fewest AS hops)
5. Prefer lowest ORIGIN code (IGP < EGP < Incomplete)
6. Prefer lowest MED (Multi-Exit Discriminator)
7. Prefer eBGP over iBGP (External over internal paths)
8. Prefer lowest IGP metric to NEXT_HOP
9. If equal, prefer oldest route (Stability)
10. Prefer lowest Router ID (Tie-breaker)

BGP in Practice — Configuration Examples

Basic eBGP Configuration (Cisco IOS):

router bgp 65001
bgp router-id 192.0.2.1
neighbor 203.0.113.1 remote-as 65002
neighbor 203.0.113.1 description eBGP to ISP
neighbor 203.0.113.1 password my-secret
!
address-family ipv4
network 198.51.100.0 mask 255.255.255.0
neighbor 203.0.113.1 activate
exit-address-family

BGP on Linux (using FRRouting):

sudo apt install frr
sudo vtysh

> configure terminal
> router bgp 65001
> bgp router-id 192.0.2.1
> neighbor 203.0.113.1 remote-as 65002
> network 198.51.100.0/24
> end
> write

Troubleshooting BGP

# Cisco IOS BGP commands
show ip bgp summary # BGP session status
show ip bgp # All BGP routes
show ip bgp 198.51.100.0 # Specific route information
show ip bgp neighbors 203.0.113.1 routes # Routes from neighbor
debug ip bgp updates # Debug BGP updates (use carefully!)

# Linux (FRR) equivalent
vtysh -c "show ip bgp summary"
vtysh -c "show ip bgp neighbors 203.0.113.1 advertised-routes"

BGP Security Concerns

Famous BGP Incidents:

• 2008 Pakistan YouTube Block: A small Pakistani ISP's BGP route leaked and took YouTube offline globally for ~2 hours.
• 2018 MyEtherWallet DNS Hijack: BGP hijack redirected traffic to a fake website, stealing cryptocurrency.
• 2021 Facebook Outage: BGP withdrawals caused Facebook, Instagram, WhatsApp to be unreachable for 6+ hours.

Mitigations:

• RPKI (Resource Public Key Infrastructure): Cryptographic validation of route origination.
• BGPsec: BGP security extensions (RFC 8205).
• Prefix Filtering: Only accept expected prefixes from neighbors.
• Max Prefix Limits: Limit the number of prefixes accepted from a peer.

5. ARP (Address Resolution Protocol)

What is ARP?

ARP resolves IP addresses (Layer 3) to MAC addresses (Layer 2) within a local network. When a device knows the IP address of another device on the same LAN but doesn't know its MAC address, ARP discovers it.

Insight: ARP only works within a single broadcast domain (subnet). For devices on different networks, the packet is sent to the default gateway's MAC address, and the gateway handles routing.

ARP Packet Structure

0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Hardware Type (1=Ethernet) | Protocol Type (0x0800=IPv4)|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| HLEN (6) | PLEN (4) | Operation |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Sender MAC Address |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Sender MAC (cont.) | Sender IP Address |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Sender IP Address (cont.) |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Target MAC Address |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Target MAC (cont.) | Target IP Address |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Target IP Address (cont.) |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

ARP Request & Reply Flow

BEFORE ARP:
Host A (IP: 192.168.1.10) wants to send to Host B (IP: 192.168.1.20)
Host A knows Host B's IP but NOT its MAC address

ARP REQUEST (Broadcast):
┌─────────────────────────────────────────────────────────────┐
│ Source MAC: AA:AA:AA:AA:AA:AA (Host A's MAC) │
│ Dest MAC: FF:FF:FF:FF:FF:FF (Broadcast — delivered │
│ to ALL devices on LAN) │
│ Sender MAC: AA:AA:AA:AA:AA:AA │
│ Sender IP: 192.168.1.10 │
│ Target MAC: 00:00:00:00:00:00 (Unknown — filled with 0) │
│ Target IP: 192.168.1.20 │
│ Operation: 1 (Request) │
└─────────────────────────────────────────────────────────────┘

ARP REPLY (Unicast):
┌─────────────────────────────────────────────────────────────┐
│ Source MAC: BB:BB:BB:BB:BB:BB (Host B's MAC) │
│ Dest MAC: AA:AA:AA:AA:AA:AA (Unicast to Host A only) │
│ Sender MAC: BB:BB:BB:BB:BB:BB │
│ Sender IP: 192.168.1.20 │
│ Target MAC: AA:AA:AA:AA:AA:AA │
│ Target IP: 192.168.1.10 │
│ Operation: 2 (Reply) │
└─────────────────────────────────────────────────────────────┘

AFTER ARP:
Host A caches: 192.168.1.20 → BB:BB:BB:BB:BB:BB
Now Host A can send IP packets to Host B using the correct MAC

ARP Cache Table

Every device maintains an ARP cache (table) to avoid repeated ARP requests:

# View ARP cache on Windows
arp -a

# Example output:
Interface: 192.168.1.10 --- 0xe
Internet Address Physical Address Type
192.168.1.1 aa-bb-cc-11-22-33 dynamic (Default gateway)
192.168.1.20 bb-bb-bb-bb-bb-bb dynamic (Host B)
192.168.1.100 cc-dd-ee-ff-00-11 dynamic (Another device)
192.168.1.200 dd-ee-ff-00-11-22 static (Manually added)

# View ARP cache on Linux/Mac
arp -n
ip neigh show

ARP Commands

# Show ARP table
arp -a
ip neigh show

# Add static ARP entry
arp -s 192.168.1.50 00:11:22:33:44:55

# Delete ARP entry
arp -d 192.168.1.20

# Clear entire ARP cache (Linux)
ip neigh flush all

# Monitor ARP traffic
tcpdump -i eth0 arp

ARP Security — ARP Spoofing/Poisoning

How ARP Spoofing Works:

ATTACKER (192.168.1.99 — MAC: CC:CC:CC:CC:CC:CC)
│
│ Sends fake ARP replies
│
▼
┌─────────────────────────────────────────────┐
│ Attacker sends to Host A: │
│ "192.168.1.1 is at CC:CC:CC:CC:CC:CC" │
│ (Host A updates ARP: Gateway → Attacker) │
│ │
│ Attacker sends to Gateway: │
│ "192.168.1.10 is at CC:CC:CC:CC:CC:CC" │
│ (Gateway updates ARP: Host A → Attacker) │
└─────────────────────────────────────────────┘

RESULT: All traffic between Host A and Gateway
flows through the attacker (MITM)

ARP Spoofing Mitigations:

ARP Variants

ARP in Different Network Types

6. IP (Internet Protocol)

What is IP?

IP is the principal communications protocol responsible for addressing hosts and routing packets from source to destination across one or more networks. It provides a connectionless, best-effort delivery service — it does not guarantee delivery, ordering, or integrity (those are handled by TCP).

Insight: IP is what makes the internet "internetwork." It allows different physical networks (Ethernet, Wi-Fi, fiber) to communicate as a unified logical network.

IPv4 (Internet Protocol version 4)

IPv4 Address Format

An IPv4 address is a 32-bit number, typically written in dotted decimal notation:

Binary: 11000000.10101000.00000001.00001010
Decimal: 192. 168. 1. 10

Address Classes (Classful Addressing — Historical):

CIDR (Classless Inter-Domain Routing) — Modern:

CIDR notation: 192.168.1.0/24 means the first 24 bits are the network portion.

Reserved IPv4 Address Ranges

IPv4 Header

0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|Version| IHL |Type of Service| Total Length |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Identification |Flags| Fragment Offset |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Time to Live | Protocol | Header Checksum |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Source Address |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Destination Address |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Options (if IHL > 5) |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

IPv6 (Internet Protocol version 6)

Why IPv6?

• IPv4 has only ~4.3 billion addresses — exhausted in 2011 (IANA) / 2015 (regional registries).
• IPv6 has 340 undecillion addresses (2¹²⁸) — enough for every device on Earth many times over.
• Eliminates NAT (Network Address Translation).
• Simplified header for faster routing.

IPv6 Address Format

IPv6 addresses are 128 bits written in hexadecimal with colon separators:

2001:0db8:85a3:0000:0000:8a2e:0370:7334

Shortening Rules:

1. Leading zeros in each group can be omitted.
2. One contiguous block of zeros can be replaced with :: (only once).

2001:0db8:85a3:0000:0000:8a2e:0370:7334
→ 2001:db8:85a3::8a2e:370:7334

Full: 2001:0db8:0000:0000:0000:0000:0000:0001
Short: 2001:db8::1

IPv6 Address Types

IPv6 Header (Simplified — 40 bytes fixed)

0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|Version| Traffic Class | Flow Label |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Payload Length | Next Header | Hop Limit |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| |
+ +
| |
+ Source Address +
| |
+ +
| |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| |
+ +
| |
+ Destination Address +
| |
+ +
| |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

IPv4 vs IPv6 Header Comparison

IP Commands & Tools

# Check IP configuration
ip addr show # Linux
ifconfig # Older Linux
ipconfig /all # Windows

# Routing table
ip route show # Linux
route -n # Older Linux
netstat -rn # All platforms
route print # Windows

# Test connectivity
ping 8.8.8.8 # ICMP echo
ping -c 4 8.8.8.8 # Linux (4 pings)
ping -n 4 8.8.8.8 # Windows (4 pings)

# Trace route
traceroute 8.8.8.8 # Linux/Mac
tracert 8.8.8.8 # Windows

# Path MTU discovery
traceroute --mtu 8.8.8.8 # Linux

# IPv6 specific
ping6 2001:4860:4860::8888
traceroute6 2001:4860:4860::8888
ip -6 addr show
ip -6 route show

IP Fragmentation

IP can fragment packets that exceed the Maximum Transmission Unit (MTU) of a link.

Original Packet: 4000 bytes
┌──────────────────────────────────────────────────────┐
│ IP Header (20) │ Data (3980) │
└──────────────────────────────────────────────────────┘

After fragmentation over 1500-byte MTU link:
Fragment 1: ┌──────────────┬────────────────────────┐
│ IP Hdr (20) │ Data (1480) [Off=0] │
│ Flags=MF │ │
└──────────────┴────────────────────────┘

Fragment 2: ┌──────────────┬────────────────────────┐
│ IP Hdr (20) │ Data (1480) [Off=185]│
│ Flags=MF │ │
└──────────────┴────────────────────────┘

Fragment 3: ┌──────────────┬────────────────────────┐
│ IP Hdr (20) │ Data (1020) [Off=370]│
│ Flags=0 │ │
└──────────────┴────────────────────────┘

Path MTU Discovery (PMTUD):

• Sender sends packets with DF (Don't Fragment) flag set.
• If a router cannot forward due to MTU, it sends ICMP "Fragmentation Needed" (Type 3, Code 4).
• Sender reduces packet size and retries.
• Problem: Many firewalls block ICMP, breaking PMTUD.

7. DHCP (Dynamic Host Configuration Protocol)

What is DHCP?

DHCP automatically assigns IP addresses and other network configuration parameters to devices. Without DHCP, every device would need manual IP configuration, which is impractical in any network larger than a handful of devices.

Insight: When you connect your phone to Wi-Fi and it "just works" — that's DHCP. The phone broadcasts a request, and the DHCP server hands it an IP address, subnet mask, gateway, and DNS servers automatically.

The DORA Process (Detailed)

Client (Phone) DHCP Server DHCP Relay (Optional)
| | |
| ① DHCP DISCOVER | |
| (Broadcast) | |
| "I need an IP!" | |
|------------------------->| |
| Source IP: 0.0.0.0 | |
| Dest IP: 255.255.255.255| |
| (Broadcast on port 67) | |
| | |
| ② DHCP OFFER | |
| (Unicast or Broadcast) | |
| "Use 192.168.1.50" | |
|<-------------------------| |
| Yiaddr: 192.168.1.50 | |
| Subnet: 255.255.255.0 | |
| Gateway: 192.168.1.1 | |
| DNS: 8.8.8.8 | |
| Lease: 86400s (24hr) | |
| | |
| ③ DHCP REQUEST | |
| (Broadcast) | |
| "I accept the offer!" | |
| (Includes DHCP Server Identifier | |
| to accept from specific server) | |
|------------------------->| |
| | |
| ④ DHCP ACK | |
| (Unicast) | |
| "Confirmed! Here are | |
| your settings." | |
|<-------------------------| |
| | |
| Client configured! | |
| IP: 192.168.1.50 | |
| Netmask: 255.255.255.0 | |
| Gateway: 192.168.1.1 | |
| DNS: 8.8.8.8 | |

DHCP Options (Key Configuration Fields)

DHCP Server Configuration Examples

ISC DHCP Server (Linux):

# /etc/dhcp/dhcpd.conf

option domain-name "example.local";
option domain-name-servers 8.8.8.8, 8.8.4.4;

default-lease-time 86400; # 24 hours
max-lease-time 604800; # 7 days
authoritative;

# Subnet definition
subnet 192.168.1.0 netmask 255.255.255.0 {
range 192.168.1.100 192.168.1.200; # Pool of assignable IPs
option routers 192.168.1.1; # Default gateway
option subnet-mask 255.255.255.0;

# Static reservation for a specific MAC
host printer {
hardware ethernet 00:11:22:33:44:55;
fixed-address 192.168.1.50;
}
}

DHCP on a Cisco Router:

ip dhcp pool LAN_POOL
network 192.168.1.0 255.255.255.0
default-router 192.168.1.1
dns-server 8.8.8.8 8.8.4.4
lease 7
!
ip dhcp excluded-address 192.168.1.1 192.168.1.10

DHCP Lease Renewal Process

Client DHCP Server
| |
|===== T = 0 (Lease Obtained) ==========|
| |
|===== T = 50% (12 hours for 24hr lease) |
|--- DHCP REQUEST (Unicast) ---------->| Client tries to renew
|<-- DHCP ACK -------------------------| Server extends lease
| |
|===== OR if no response ==== |
| |
|===== T = 87.5% (21 hours) ===========|
|--- DHCP REQUEST (Broadcast) -------->| Anyone can respond
|<-- DHCP ACK -------------------------| Original or new server
| |
|===== T = 100% (24 hours) ============|
| Lease EXPIRED — Client must stop |
| using the IP and start DORA again |

DHCP Commands & Troubleshooting

# Windows
ipconfig /renew # Force renew IP
ipconfig /release # Release current IP
ipconfig /all # View DHCP lease info

# Linux
sudo dhclient -r # Release IP
sudo dhclient # Renew IP
sudo dhclient eth0 # Renew on specific interface
sudo systemctl restart networking

# View DHCP server logs
tail -f /var/log/syslog | grep dhcp

# DHCP traffic capture
tcpdump -i eth0 port 67 or port 68

# Check DHCP lease file (Linux)
cat /var/lib/dhclient/dhclient.leases

DHCP Attacks & Mitigations

DHCP Snooping (Cisco):

ip dhcp snooping
ip dhcp snooping vlan 10
interface GigabitEthernet0/1
ip dhcp snooping trust # Port connected to DHCP server
interface GigabitEthernet0/2
ip dhcp snooping limit rate 10 # Rate limit client ports

8. DNS (Domain Name System)

What is DNS?

DNS translates human-readable domain names (like www.google.com) into machine-readable IP addresses (like 142.250.190.4). It is often called the "phonebook of the internet."

Without DNS, you would need to memorize IP addresses like 142.250.190.4 to visit Google — which is impractical for the billions of websites on the internet.

Insight: DNS is a distributed, hierarchical database. No single server holds all domain-to-IP mappings. Instead, the responsibility is delegated across thousands of servers worldwide.

DNS Hierarchy

Root Zone
(.) "."
/|\
┌──────────────┼──────────────┐
/ │ \
▼ ▼ ▼
Top-Level Top-Level Top-Level
Domains (TLDs) Domains (TLDs) Domains (TLDs)
.com .org .in
/ | \ / \ \
/ | \ / \ \
▼ ▼ ▼ ▼ ▼ ▼
Second-Level Domains:
google.com facebook.com reddit.com
│ │ │
▼ ▼ ▼
Subdomains:
www.google.com mail.google.com drive.google.com
api.google.com maps.google.com admin.google.com

DNS Resolution Process — Step by Step

Your Browser OS Resolver Root Server .com TLD Server Authoritative
www.google.com (e.g., 8.8.8.8) (ns1.google.com)
│ │ │ │ │
│ │ │ │ │
│--- DNS Query --------------->│ │ │ │
│ "www.google.com" │ │ │ │
│ │ │ │ │
│ [Cache Check] │ │ │
│ (Miss!) │ │ │
│ │ │ │ │
│ │--- Query ---------->│ │ │
│ │ ". → root servers"│ │ │
│ │<-- Referral --------│ │ │
│ │ "Ask .com TLD │ │ │
│ │ at a.gtld-servers.net" │ │
│ │ │ │ │
│ │--- Query ---------------------------->│ │
│ │ "google.com → TLD" │ │
│ │<-- Referral --------------------------│ │
│ │ "Ask ns1.google.com" │ │
│ │ (Authoritative) │ │
│ │ │ │ │
│ │--- Query ---------------------------------------------->│
│ │ "www.google.com → Auth" │
│ │<-- Response --------------------------------------------│
│ │ "www.google.com = 142.250.190.4" │
│ │ │ │ │
│<--- IP Address --------------│ │ │ │
│ 142.250.190.4 │ │ │ │
│ │ │ │ │
▼ ▼ ▼ ▼ ▼
[Connects via HTTPS to 142.250.190.4]

DNS Record Types — Complete Reference

Detailed Record Examples

; EXAMPLE.COM Zone File
$TTL 86400
@ IN SOA ns1.example.com. admin.example.com. (
2024071801 ; Serial (YYYYMMDDNN)
3600 ; Refresh (1 hour)
900 ; Retry (15 min)
604800 ; Expire (7 days)
86400 ; Minimum TTL (1 day)
)

; Name Servers
@ IN NS ns1.example.com.
@ IN NS ns2.example.com.

; A Records (IPv4)
@ IN A 192.0.2.1
www IN A 192.0.2.1
api IN A 192.0.2.2
mail IN A 192.0.2.3

; AAAA Records (IPv6)
@ IN AAAA 2001:db8::1
www IN AAAA 2001:db8::1

; CNAME Records (Aliases)
ftp IN CNAME www.example.com.
blog IN CNAME blogs.example.com. ; External blogging platform

; MX Records (Email)
@ IN MX 10 mail.example.com. ; Priority 10 (primary)
@ IN MX 20 backupmail.example.com. ; Priority 20 (backup)

; TXT Records (Verification & Security)
@ IN TXT "v=spf1 mx include:_spf.google.com ~all"
@ IN TXT "google-site-verification=xxxxxxxxxxx"

; SRV Record (e.g., SIP)
_sip._tcp.example.com. IN SRV 10 60 5060 sipserver.example.com.
; Priority Weight Port Target

DNS Commands & Tools

# Basic DNS queries
nslookup google.com # Simple lookup
nslookup -type=MX google.com # MX record lookup

# Dig (more powerful)
dig google.com # Standard query
dig google.com A # Query A record
dig google.com MX # Query MX record
dig google.com ANY # All records (deprecated)
dig -x 8.8.8.8 # Reverse lookup (PTR)

# Advanced dig commands
dig @8.8.8.8 google.com # Query specific DNS server
dig +trace google.com # Show full resolution path
dig +short google.com # Short answer only
dig +dnssec google.com # Show DNSSEC records

# Host command
host google.com # Simple DNS lookup
host -t MX google.com # Type-specific

# DNS troubleshooting
whois example.com # Domain registration info

DNS Caching Architecture

┌─────────────────────┐
│ │
│ Web Browser │ Browser DNS Cache
│ (Small, short TTL) │ (Chrome: chrome://net-internals/#dns)
└────────┬────────────┘
│
┌────────▼────────────┐
│ │
│ Operating System │ OS DNS Cache (stub resolver)
│ (DNS Client Cache) │ Windows: ipconfig /displaydns
└────────┬────────────┘ Linux: systemd-resolved
│
┌────────▼────────────┐
│ │
│ Recursive DNS │ ISP or Public DNS Resolver
│ Resolver │ (e.g., 8.8.8.8, 1.1.1.1)
│ (Largest cache) │
└────────┬────────────┘
│
▼
Root → TLD → Authoritative Servers

DNS Configuration Files

Linux (/etc/resolv.conf):

nameserver 8.8.8.8
nameserver 8.8.4.4
nameserver 2001:4860:4860::8888
search example.com internal.example.com # Search domains
options timeout:2 attempts:3 rotate

Windows (PowerShell):

# View DNS cache
ipconfig /displaydns

# Flush DNS cache
ipconfig /flushdns

# Set DNS servers
netsh interface ip set dns "Wi-Fi" static 8.8.8.8
netsh interface ip add dns "Wi-Fi" 8.8.4.4 index=2

BIND9 Configuration (Linux DNS Server):

# /etc/bind/named.conf.local
zone "example.com" {
type master;
file "/etc/bind/db.example.com";
allow-transfer { 192.168.1.2; }; # Slave server
};

# /etc/bind/db.example.com
$TTL 86400
@ IN SOA ns1.example.com. admin.example.com. (
2024071801 3600 900 604800 86400
)
@ IN NS ns1.example.com.
@ IN A 192.168.1.10
www IN A 192.168.1.10

DNS Security — DNSSEC

Problem: DNS responses can be spoofed (cache poisoning).

Attacker sends fake DNS response before real server:
"google.com = 192.0.2.100" (attacker's server)
→ Browser connects to fake server
→ Password stolen

Solution: DNSSEC (DNS Security Extensions) cryptographically signs DNS data.

; DNSSEC-enabled response includes RRSIG record
www.example.com. 86400 IN A 192.0.2.1
www.example.com. 86400 IN RRSIG A 13 3 86400 20240725235959 (
20240626000000 12345 example.com.
base64signature== )

DNS Record Validation Chain:

Root Zone (signed) → .com Zone (signed) → example.com (signed)
DS record DS record DNSKEY + RRSIG

Common DNS Issues

Practical DNS Scenarios

Scenario 1: Website Migration

# Before migration: Change TTL to 300 (5 min) 48 hours before
www.example.com. 300 IN A 203.0.113.1
# Migrate server at old TTL
# Change A record to new IP:
www.example.com. 86400 IN A 198.51.100.1
# Verify propagation:
dig www.example.com +short @8.8.8.8

Scenario 2: Load Balancing with DNS

# Round-robin DNS — multiple A records
www.example.com. 60 IN A 192.0.2.1
www.example.com. 60 IN A 192.0.2.2
www.example.com. 60 IN A 192.0.2.3
# Each query returns IPs in different order (RR rotation)
