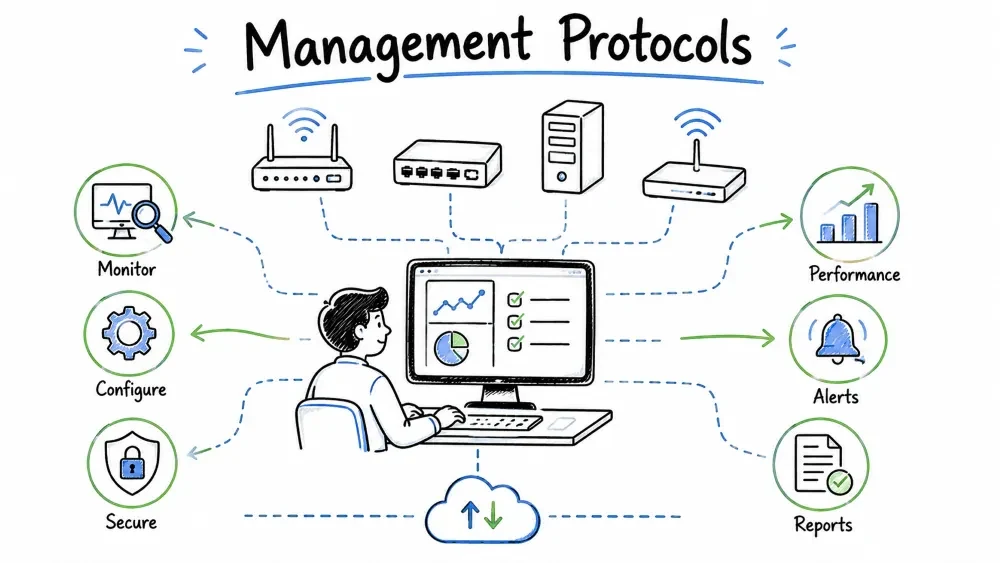

Management Protocols — Network Monitoring, Remote Control and Time Sync

Category: Management Protocols — These protocols are used to monitor, manage, diagnose, and control network devices, systems, and services. They help network administrators maintain visibility and control over network infrastructure.

Table of Contents

1. ICMP
2. SNMP
3. POP3 & SMTP
4. TELNET
5. NTP

1. ICMP (Internet Control Message Protocol)

What is ICMP?

ICMP is a control protocol used by network devices (routers, switches, hosts) to send error messages and operational information about network conditions. Unlike TCP and UDP, ICMP is not used for transporting application data — it is a management protocol that reports on the health and status of the network itself.

Key Insight: ICMP is the network's "check engine light" — it reports problems (unreachable destinations, exceeded TTLs, congestion) but does not fix them. Applications like ping and traceroute use ICMP to diagnose network connectivity.

ICMP Packet Structure

0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Type | Code | Checksum |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Rest of Header (depends on Type/Code) |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| ICMP Data (variable length) |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Complete ICMP Type & Code Reference

How Ping Works (Detailed)

PING COMMAND: ping -c 4 google.com

1. Resolve hostname:
ping google.com → DNS resolves to IP: 142.250.190.4

2. Send ICMP Echo Requests:
┌─────────────┬──────┬──────┬─────────────────────┐
│ ICMP Type=8 │ Code=0│ Seq=1│ Payload (56 bytes) │
├─────────────┼──────┼──────┼─────────────────────┤
│ ICMP Type=8 │ Code=0│ Seq=2│ Payload (56 bytes) │
├─────────────┼──────┼──────┼─────────────────────┤
│ ICMP Type=8 │ Code=0│ Seq=3│ Payload (56 bytes) │
├─────────────┼──────┼──────┼─────────────────────┤
│ ICMP Type=8 │ Code=0│ Seq=4│ Payload (56 bytes) │
└─────────────┴──────┴──────┴─────────────────────┘

3. Receive ICMP Echo Replies:
┌─────────────┬──────┬──────┬─────────────────────┐
│ ICMP Type=0 │ Code=0│ Seq=1│ Payload (56 bytes) │
├─────────────┼──────┼──────┼─────────────────────┤
│ ICMP Type=0 │ Code=0│ Seq=2│ Payload (56 bytes) │
└─────────────┴──────┴──────┴─────────────────────┘

4. Display statistics:
PING google.com (142.250.190.4): 56 data bytes
64 bytes from 142.250.190.4: icmp_seq=1 ttl=117 time=12.3 ms
64 bytes from 142.250.190.4: icmp_seq=2 ttl=117 time=11.8 ms
64 bytes from 142.250.190.4: icmp_seq=3 ttl=117 time=14.2 ms
64 bytes from 142.250.190.4: icmp_seq=4 ttl=117 time=13.1 ms

--- google.com ping statistics ---
4 packets transmitted, 4 received, 0% packet loss
round-trip min/avg/max/stddev = 11.8/12.85/14.2/0.92 ms

Ping Metric Interpretation:

How Traceroute Works

TRACEROUTE COMMAND: traceroute google.com

Step 1: TTL=1
┌─────┐ ICMP Echo TTL=1 ┌─────┐
│ You │ ──────────────────────> │ R1 │ ← Router decrements TTL to 0
│ │ <── ICMP Time Exceeded ──│ │ and sends ICMP Type 11
└─────┘ (11/0) └─────┘
"Hop 1: 192.168.1.1 (12.3ms)"

Step 2: TTL=2
┌─────┐ TTL=2 ┌─────┐ TTL=1 ┌─────┐
│ You │ ─────→ │ R1 │ ─────→ │ R2 │ ← TTL expires
│ │ └─────┘ │ │
│ │ <── ICMP Time Exceeded │ │
└─────┘ (From R2) └─────┘
"Hop 2: 203.0.113.1 (14.7ms)"

Step 3: TTL=3 (Destination Reached)
┌─────┐ TTL=3 ┌──...──┐ TTL=1 ┌──────────┐
│ You │ ─────→ │ Router│ ─────→ │ Google │
│ │ │ ... │ │ Server │
│ │ <── ICMP Echo Reply (Type 0) ──────│
└─────┘ └──────────┘
"Hop 3: 142.250.190.4 (11.2ms)"

Final Output:
traceroute to google.com (142.250.190.4), 30 hops max
1 * * * (timeout — hidden hop)
2 192.168.1.1 (192.168.1.1) 0.451 ms (home router)
3 10.0.0.1 (10.0.0.1) 5.123 ms (ISP router)
4 172.16.1.2 (172.16.1.2) 12.456 ms (ISP backbone)
5 ...
12 142.250.190.4 (142.250.190.4) 13.2 ms (destination)

ICMP Commands & Tools

# Ping
ping 8.8.8.8 # Continuous ping (Linux)
ping -c 10 8.8.8.8 # 10 pings
ping -n 10 8.8.8.8 # Windows equivalent
ping -s 1472 8.8.8.8 # Set packet size (MTU testing)
ping -f 8.8.8.8 # Flood ping (requires root)
ping -i 0.5 8.8.8.8 # Ping every 0.5 seconds

# Traceroute
traceroute google.com # Linux/Mac
tracert google.com # Windows
traceroute -I google.com # Use ICMP (Linux)
traceroute -T google.com # Use TCP (Linux)
traceroute -n google.com # Don't resolve hostnames

# Path MTU Discovery
traceroute --mtu 8.8.8.8

# Ping sweep (scan a subnet)
for i in $(seq 1 254); do ping -c 1 -W 1 192.168.1.$i | grep "bytes from"; done

# Monitor ICMP traffic
tcpdump icmp # All ICMP
tcpdump -i eth0 'icmp[0] == 8' # Only Echo Requests
tcpdump -i eth0 'icmp[0] == 11' # Only TTL Exceeded

ICMP Security Considerations

Mitigation Best Practices:

# Linux iptables — allow essential ICMP, block dangerous ones
# Allow Echo Request (ping) — but rate limit
iptables -A INPUT -p icmp --icmp-type echo-request -m limit --limit 1/s -j ACCEPT
iptables -A INPUT -p icmp --icmp-type echo-request -j DROP

# Allow essential ICMP for PMTUD
iptables -A INPUT -p icmp --icmp-type fragmentation-needed -j ACCEPT
iptables -A INPUT -p icmp --icmp-type time-exceeded -j ACCEPT
iptables -A INPUT -p icmp --icmp-type destination-unreachable -j ACCEPT

# Block dangerous ICMP
iptables -A INPUT -p icmp --icmp-type redirect -j DROP
iptables -A INPUT -p icmp --icmp-type source-quench -j DROP

2. SNMP (Simple Network Management Protocol)

What is SNMP?

SNMP is an internet standard protocol for collecting and organizing information about managed devices (routers, switches, servers, printers, UPS) on IP networks and for modifying device behavior to change configurations or trigger events. It is the foundation of most enterprise network monitoring systems.

Key Insight: Think of SNMP as a standardized "health check API" for network devices. Instead of logging into each device individually to check CPU usage, interface status, or temperature, SNMP lets you query ALL devices from a central monitoring station.

SNMP Architecture

┌──────────────────────────────────────────────┐
│ SNMP Manager │
│ (Monitoring System — Nagios, Zabbix, PRTG, │
│ SolarWinds, Cacti, LibreNMS) │
└──────────┬────────────────────┬──────────────┘
│ │
GET/GETNEXT/GETBULK │
│ │ TRAP/INFORM
│ │ │
┌─────────▼─────────┐ ┌───────▼────────┐ ┌──────┴─────┐
│ SNMP Agent │ │ SNMP Agent │ │ SNMP Agent │
│ (Router) │ │ (Switch) │ │ (Server) │
│ ┌───────────┐ │ │ ┌───────────┐ │ │ ┌─────────┐│
│ │ MIB │ │ │ │ MIB │ │ │ │ MIB ││
│ │ OID tree │ │ │ │ OID tree │ │ │ │ OID tree││
│ └───────────┘ │ │ └───────────┘ │ │ └─────────┘│
└──────────────────┘ └────────────────┘ └─────────────┘

SNMP Components

SNMP OID Tree Structure

iso (1)
└── org (3)
└── dod (6)
└── internet (1)
├── directory (1) [1.3.6.1.1]
├── mgmt (2) [1.3.6.1.2]
│ └── mib-2 (1) [1.3.6.1.2.1]
│ ├── system (1) → sysDescr, sysName, sysUpTime
│ ├── interfaces (2) → ifNumber, ifTable
│ ├── ip (4) → ipForwarding, ipRouteTable
│ ├── icmp (5) → icmpInEchos, icmpOutEchos
│ ├── tcp (6) → tcpRtoAlgorithm, tcpConnTable
│ ├── udp (7) → udpInDatagrams, udpTable
│ └── snmp (11) → snmpInPkts, snmpOutPkts
├── experimental (3) [1.3.6.1.3]
├── private (4) [1.3.6.1.4]
│ └── enterprises (1)[1.3.6.1.4.1]
│ ├── cisco (9)
│ ├── microsoft (311)
│ ├── hp (11)
│ └── juniper (2636)
└── security (5) [1.3.6.1.5]

Common OIDs and Their Meanings

SNMP Messages (PDU Types)

SNMP Version Comparison

SNMPv3 Security Levels:

SNMP Configuration Examples

Linux SNMP Agent (snmpd.conf):

# /etc/snmp/snmpd.conf

# System contact info
sysLocation "Data Center A, Rack 12"
sysContact "admin@example.com"

# SNMPv2c — read-only community (avoid for production)
rocommunity public 192.168.1.0/24
rwcommunity private 192.168.100.0/24 # Read-write — RESTRICT!

# SNMPv3 — User with authentication and encryption
createUser admin SHA "auth-password-here" AES "encrypt-password-here"
rouser admin authPriv

# Which MIBs to load
# View-based access control (v3 example)
view all-mibs included .1
access admin "" any noauth exact all-mibs none none

# Process monitoring
proc httpd 10 5 # at least 10, max 5% CPU (redundant)
proc sshd
proc crond

# Disk monitoring
disk / 10% # Alert if / is >90% full
disk /var 20% # Alert if /var is >80% full

# Load average monitoring
load 12 10 5 # 1-min avg < 12, 5-min < 10, 15-min < 5

Cisco Router SNMP Configuration:

! SNMPv2c configuration (basic, insecure)
snmp-server community public RO
snmp-server community private RW
snmp-server location "NYC-DC-Core-1"
snmp-server contact "noc@example.com"

! SNMP Traps
snmp-server enable traps snmp
snmp-server enable traps bgp
snmp-server enable traps config
snmp-server host 192.168.10.100 version 2c public

! SNMPv3 configuration (secure)
snmp-server group ADMINS v3 priv
snmp-server user monitor ADMINS v3 auth sha authpass123 priv aes 256 encryptpass
snmp-server enable traps
snmp-server host 192.168.10.100 version 3 priv monitor

SNMP Troubleshooting Tools

# snmpwalk — Walk the OID tree
snmpwalk -v2c -c public 192.168.1.1
snmpwalk -v3 -l authPriv -u admin -a SHA -A authpass -x AES -X privpass 192.168.1.1

# snmpget — Get a specific OID
snmpget -v2c -c public 192.168.1.1 .1.3.6.1.2.1.1.3.0

# snmpgetnext — Get next OID
snmpgetnext -v2c -c public 192.168.1.1 .1.3.6.1.2.1.1.1.0

# snmptable — Read an entire table
snmptable -v2c -c public 192.168.1.1 .1.3.6.1.2.1.2.2

# snmptrap — Send a test trap
snmptrap -v2c -c public 192.168.1.100 '' .1.3.6.1.4.1.9999
.1.3.6.1.4.1.9999.1 s "Test alert from host"

# snmpset — Write a value (changing configuration!)
snmpset -v2c -c private 192.168.1.1 .1.3.6.1.2.1.1.5.0 s "router-new-name"

# snmpstatus — Quick device health check
snmpstatus -v2c -c public 192.168.1.1

# Monitor SNMP traffic
tcpdump -i eth0 port 161 or port 162

MIB Files — Where to Find Them

# Default MIB locations
/usr/share/snmp/mibs/ # Linux
/usr/share/mibs/ # Some distros
C:\Windows\System32\drivers\etc\snmp\mibs # Windows

# Common MIB files to download
CISCO-SMI.my # Cisco structure
CISCO-CONFIG-MAN-MIB.my # Cisco config management
IF-MIB.my # Interface counters (standard)
HOST-RESOURCES-MIB.my # CPU, memory, disk (standard)
UCD-SNMP-MIB.my # Linux system metrics

# Load MIB for better output
snmpwalk -v2c -c public -m +IF-MIB 192.168.1.1 ifTable

SNMP Security Risks

3. POP3 & SMTP (Email Protocols)

What Are Email Protocols?

Email delivery is a multi-stage process involving three distinct protocols and often multiple servers:

┌──────────────┐
Sender's MUA ──────> │ SMTP (587) │ ──── Outgoing Mail
(Outlook, Gmail app) │ Submission │ Server
└──────┬───────┘
│ SMTP (25)
│ Relay
▼
┌──────────────┐
│ Sender's MTA │
│ (Mail Server) │
└──────┬───────┘
│ SMTP (25) - Internet
▼
┌──────────────┐
│ Recipient's │
│ MTA (Server) │
└──┬───────────┘
│
┌────────────┼────────────┐
│ │
▼ ▼
┌──────────────┐ ┌──────────────┐
│ POP3 (110) │ │ IMAP (143) │
│ Downloads │ │ Syncs with │
│ to client │ │ server │
└──────────────┘ └──────────────┘
│ │
▼ ▼
Recipient's MUA Recipient's MUA

3A. SMTP — Simple Mail Transfer Protocol

What is SMTP?

SMTP is the protocol for sending email messages and relaying them between mail servers. It operates in a store-and-forward fashion — a message may pass through multiple SMTP servers before reaching its destination.

Key Insight: SMTP is a push protocol — it PUSHES email from the sender to the recipient's mail server. To READ the email, you need a different protocol (POP3 or IMAP) which PULLS the email from the server.

SMTP Transaction Flow

CLIENT (MUA/Sending Server) SERVER (Receiving Server)
| |
|===== Connection Establishment ===========|
|--- TCP SYN port 25/587 ----------------->|
|<-- TCP SYN-ACK ---------------------------|
|--- TCP ACK ------------------------------>|
| |
|===== SMTP Conversation ===================|
| |
|--- EHLO mail.example.com --------------->| (Or HELO for older servers)
|<-- 250-smtp.example.com Hello | Server capabilities response
| 250-SIZE 52428800 | (Size limit, auth methods,
| 250-PIPELINING | others)
| 250-AUTH LOGIN PLAIN |
| 250 STARTTLS |
| |
|--- AUTH LOGIN -------------------------->| (Authentication)
|<-- 334 VXNlcm5hbWU6 ---------------------| Base64 "Username:"
|--- dXNlckBleGFtcGxlLmNvbQ ==------------>| Base64 of "user@example.com"
|<-- 334 UGFzc3dvcmQ6 ---------------------| Base64 "Password:"
|--- Y2hhbmNlbWU= ------------------------->| Base64 of password
|<-- 235 Authentication successful ---------|
| |
|--- MAIL FROM:<sender@example.com> ------>| (Sender address)
|<-- 250 OK --------------------------------|
| |
|--- RCPT TO:<recipient@other.com> ------->| (Recipient address)
|<-- 250 Accepted --------------------------|
| |
|--- DATA --------------------------------->| (Begin message body)
|<-- 354 Start mail input ------------------|
| |
| (Message headers + body) |
| From: sender@example.com |
| To: recipient@other.com |
| Subject: Hello |
| Date: Thu, 18 Jul 2024 10:00:00 +0000 |
| MIME-Version: 1.0 |
| Content-Type: text/plain |
| |
| This is the email body |
| |
|--- . (CRLF.CRLF) ----------------------->| (End of message)
|<-- 250 OK: Message accepted --------------|
| |
|--- QUIT --------------------------------->|
|<-- 221 Bye --------------------------------|

SMTP Response Codes

Email Message Format (RFC 5322)

┌─────────────────────────────────────────────────────────┐
│ ENVELOPE │
│ (MAIL FROM, RCPT TO — not visible to user) │
├─────────────────────────────────────────────────────────┤
│ │
│ HEADERS: │
│ Return-Path: <sender@example.com> │
│ Received: from mail.example.com by mx.other.com │
│ DKIM-Signature: v=1; a=rsa-sha256; d=example.com │
│ Received-SPF: pass (google.com) │
│ From: John Doe <john@example.com> │
│ To: jane@other.com │
│ Subject: Meeting Tomorrow │
│ Date: Thu, 18 Jul 2024 10:00:00 +0000 │
│ Message-ID: <abc123@mail.example.com> │
│ MIME-Version: 1.0 │
│ Content-Type: multipart/alternative; boundary=xyz │
│ │
├─────────────────────────────────────────────────────────┤
│ BODY: │
│ --xyz │
│ Content-Type: text/plain │
│ │
│ Hi Jane, Let's meet tomorrow at 3pm. - John │
│ │
│ --xyz │
│ Content-Type: text/html │
│ │
│ <html><body><p>Hi Jane, Let's meet...</p></body></html> │
│ --xyz-- │
└─────────────────────────────────────────────────────────┘

3B. POP3 — Post Office Protocol v3

What is POP3?

POP3 is an email retrieval protocol that downloads email messages from a server to a single client device, then typically deletes them from the server. It's designed for offline access — once downloaded, you can read emails without an internet connection.

Key Insight: POP3 is the "take-out" approach to email — you take your messages off the server and store them locally. Best for single-device use with limited server storage.

POP3 Session Flow

USER CLIENT (Thunderbird/Outlook) POP3 SERVER
| |
|=== Login Phase =======================|
|--- TCP Connect (port 110) ----------->|
|<-- +OK POP3 server ready -------------|
|--- USER johndoe --------------------->|
|<-- +OK Password required --------------|
|--- PASS secret123 ------------------->|
|<-- +OK 5 messages (3200 octets) -------|
| |
|=== Transaction Phase =================|
|--- STAT ------------------------------>|
|<-- +OK 5 3200 -------------------------| (5 messages, 3200 bytes total)
| |
|--- LIST ------------------------------>|
|<-- +OK 5 messages: --------------------|
| 1 1200 |
| 2 800 |
| 3 500 |
| 4 400 |
| 5 300 |
| . |
| |
|--- RETR 1 ---------------------------->| (Retrieve message 1)
|<-- +OK 1200 octets --------------------|
| (Full message headers + body) |
| . |
| |
|--- DELE 1 ---------------------------->| (Mark message 1 for deletion)
|<-- +OK Message 1 deleted ---------------|
| |
|--- RETR 2 ---------------------------->| (Retrieve message 2)
|--- DELE 2 ---------------------------->| (Mark for deletion)
| |
|=== Update Phase =======================|
|--- QUIT ------------------------------->|
|<-- +OK Bye, 2 messages marked ----------|
| (Server actually deletes messages) |

POP3 Commands Reference

Email Security — SPF, DKIM, DMARC

SPF (Sender Policy Framework)

DNS record that lists which servers are authorized to send email for a domain.

example.com. TXT "v=spf1 mx include:_spf.google.com ip4:203.0.113.0/24 ~all"
^^^^ ^^^^^
Authorized senders Softfail others

SPF Mechanisms:

SPF Qualifiers:

DKIM (DomainKeys Identified Mail)

Cryptographic signature that verifies email integrity and sender domain.

DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed;
d=example.com; s=google;
h=from:to:subject:date:message-id;
bh=47DEQpj8HBSa+/TImW+5JCeuQeRkm5NM...;
b=EvWxfx/fY8I0xE7nu3VX...

DKIM DNS Record:

google._domainkey.example.com. TXT "v=DKIM1; k=rsa; t=y; p=MIGfMA0GCSqGSIb4...
^
(Public key used to verify signature)

DMARC (Domain-based Message Authentication)

Policy that tells receivers what to do if SPF and DKIM fail.

_dmarc.example.com. TXT "v=DMARC1; p=quarantine; rua=mailto:dmarc@example.com"

DMARC Policy (p=):

Email Command-Line Tools

# Send email via SMTP (using sendmail)
echo "Subject: Test Email" | sendmail user@example.com

# Send via telnet (manual SMTP)
telnet mail.example.com 25
EHLO client.example.com
MAIL FROM:<test@example.com>
RCPT TO:<recipient@example.com>
DATA
Subject: Test
This is a test.
.
QUIT

# Test SMTP AUTH
openssl s_client -starttls smtp -connect smtp.gmail.com:587

# Check SPF records
dig TXT example.com | grep "v=spf1"

# Check DKIM
dig TXT google._domainkey.example.com

# Check DMARC
dig TXT _dmarc.example.com

# Email analysis with swaks (Swiss Army Knife for SMTP)
swaks --to recipient@example.com --from sender@example.com \
--server smtp.example.com --auth LOGIN \
--header "Subject: Test" --body "Hello"

# Mail queue inspection (Linux)
mailq
postqueue -p

Email Protocol Security Issues

4. TELNET

What is TELNET?

Telnet is one of the oldest remote access protocols, allowing users to access devices (routers, switches, servers) from a remote location using a command-line interface. It provides a bidirectional, interactive text-oriented communication facility.

Key Insight: Telnet is the original remote desktop — but for terminals. It was revolutionary in 1983, but its complete lack of security makes it dangerous for any production network today. Always use SSH instead.

Telnet Session Flow

CLIENT (Telnet Client) SERVER (Telnet Daemon)
| |
|--- TCP Handshake (port 23) ----------->|
|<-- TCP SYN-ACK |
|--- TCP ACK ---------------------------->|
| |
|--- Telnet Negotiation ------------------>|
| IAC DO TERMINAL-TYPE | (Client tells server it can
|<-- IAC WILL TERMINAL-TYPE ---------------| send terminal capabilities)
|--- IAC SB TERMINAL-TYPE |
| "xterm-256color" IAC SE |
| |
|<-- Login prompt -------------------------|
|--- "admin\r\n" ------------------------->| (Sent in PLAINTEXT!)
|<-- Password prompt ----------------------|
|--- "secret123\r\n" --------------------->| (Sent in PLAINTEXT!)
|<-- "Welcome to Device" -----------------|
| |
|<==== Command-Line Session ===============>|
|--- "show running-config\r\n" ----------->| (All commands in plaintext)
|<-- "interface GigabitEthernet0/1..." ----| (All output in plaintext)
| |
|--- "exit\r\n" -------------------------->|
|<-- Connection closed --------------------|

TELNET Protocol Details

Telnet NVT (Network Virtual Terminal)

The NVT is a virtual device that defines a standard interface between client and server, ensuring interoperability:

Telnet IAC (Interpret As Command) Sequences

Telnet uses the byte 0xFF (IAC) as an escape character to embed command sequences in the data stream:

IAC + Command + Options

IAC WILL [option] → Sender wants to enable option
IAC WONT [option] → Sender wants to disable option
IAC DO [option] → Sender wants receiver to enable option
IAC DONT [option] → Sender wants receiver to disable option
IAC SB [option] data IAC SE → Sub-negotiation (e.g., terminal type)

Standard Telnet Options

Telnet Configuration Examples

Windows 10/11 — Enable Telnet Client:

# As Administrator
dism /online /Enable-Feature /FeatureName:TelnetClient

# OR via PowerShell
Install-WindowsFeature -Name Telnet-Client

Linux — Install Telnet:

# Install server
sudo apt install telnetd xinetd

# Install client
sudo apt install telnet

# Check if running
sudo netstat -tlnp | grep :23

Cisco Router — Telnet Configuration:

! Enable Telnet access on line VTY
line vty 0 4
login local
password 7 0822455D0A16 ! Insecure — password can be decrypted
transport input telnet
! Better: allow both (for migration period)
transport input telnet ssh

Using Telnet as a Generic TCP Client

Telnet is often used as a generic TCP client for testing other protocols:

# Test HTTP
telnet example.com 80
GET / HTTP/1.1
Host: example.com
[Press Enter twice]

# Test SMTP
telnet mail.example.com 25
EHLO client
MAIL FROM:<test@example.com>

# Test POP3
telnet mail.example.com 110
USER username
PASS password

# Test if a port is open
telnet server.example.com 3306 # MySQL
telnet server.example.com 5432 # PostgreSQL
telnet server.example.com 22 # SSH

Why Telnet is Insecure — A Demonstration

Attacker on same network uses Wireshark/tcpdump to capture all traffic:

tcpdump -i eth0 port 23 -X

Captured packet:
────────────────────────────────────────────────┐
0000 00 11 22 33 44 55 66 77 88 99 aa bb │ Ethernet header
0010 08 00 45 00 ... │ IP header
0020 ... 00 23 ... │ TCP, dest port 23
0030 61 64 6d 69 6e 0d 0a │ "admin\r\n" ← USERNAME visible!
0040 70 61 73 73 77 6f 72 64 0d 0a │ "password\r\n" ← PASSWORD visible!
0050 63 6f 6e 66 69 67 75 72 65 0d 0a │ "configure\r\n" ← COMMANDS visible!
0060 73 68 6f 77 20 72 75 6e │ "show run" ← SENSITIVE DATA!
────────────────────────────────────────────────┘

Everything is clearly readable — no encryption whatsoever!

TELNET vs SSH — Complete Comparison

5. NTP (Network Time Protocol)

What is NTP?

NTP synchronizes the clocks of computers over a network to within a few milliseconds (or even microseconds) of Coordinated Universal Time (UTC). Accurate time is critical for:

• Log correlation — matching events across hundreds of servers
• Authentication — Kerberos, TLS certificates depend on accurate time
• Distributed databases — consistency protocols (Paxos, Raft)
• Financial transactions — millisecond-precise timestamps
• Scheduled tasks — cron jobs, backups, maintenance windows
• Security protocols — ticket-based auth (Kerberos), certificate validation

Key Insight: Time synchronization is like a universal "source of truth" for all devices — without it, your logs become meaningless, your authentication breaks, and your distributed systems fail.

NTP Stratum Hierarchy

Stratum 0 ┌─────────────────────────────────────────────────────────────┐
│ Atomic Clocks (Cesium), GPS Receivers, Radio Clocks (WWVB) │
│ Extremely accurate (±1μs) but expensive and fragile │
└───────────────────┬─────────────────────────────────────────┘
│ PPS (Pulse Per Second)
▼
Stratum 1 ┌─────────────────────────────────────────────────────────────┐
│ Primary Time Servers directly connected to Stratum 0 │
│ Examples: time.google.com, time.nist.gov, pool.ntp.org │
│ Accuracy: ±1-100μs (local to Stratum 0) │
└──┬──────────┬──────────┬──────────┬─────────────────────────┘
│ │ │ │
▼ ▼ ▼ ▼
Stratum 2 [Server 1] [Server 2] [Server 3] [Server 4]
│ Accuracy: ±1-50ms (over internet) │
│ Typically peers with 3+ Stratum 1 servers │
└──┬──────────┬──────────┬──────────┬─────────────────────────┘
│ │ │ │
▼ ▼ ▼ ▼
Stratum 3 [Server A] [Server B] [Server C] [Server D]
│ Accuracy: ±10-100ms │
│ Enterprise network clients, workstations │
└─────────────────────────────────────────────────────────────┘

Stratum 4+
└── End-user devices (phones, laptops, IoT)

NTP Algorithm — How Time Syncing Works

NTP uses a sophisticated algorithm to calculate offset and delay:

T1 T2
│ │
│──── Request ──────→│
│ ←──────────────────│
│ │
T4 T3

T1 = Client send time
T2 = Server receive time
T3 = Server send time
T4 = Client receive time

Calculations:

Round-trip delay (network latency):

δ = (T4 - T1) - (T3 - T2)

Example:
δ = (10:00:01.100 - 10:00:00.000) - (10:00:00.400 - 10:00:00.200)
δ = 1.100s - 0.200s
δ = 0.900s (900ms round trip)

Time offset (how much the client is off):

θ = ((T2 - T1) + (T3 - T4)) / 2

Example:
θ = ((10:00:00.200 - 10:00:00.000) + (10:00:00.400 - 10:00:01.100)) / 2
θ = (0.200s + (-0.700s)) / 2
θ = -0.250s (Client is 250ms AHEAD of server)

The client then slews its clock (not jumps!) to gradually correct the offset.

NTP Time Correction Methods

NTP Configuration Examples

Linux /etc/ntp.conf:

# /etc/ntp.conf — NTP daemon configuration

# Use public NTP pool servers (assigned geographically)
server 0.pool.ntp.org iburst
server 1.pool.ntp.org iburst
server 2.pool.ntp.org iburst
server 3.pool.ntp.org iburst

# Fallback to Google's public NTP
server time1.google.com iburst
server time2.google.com iburst

# Local clock as last resort (stratum 10 = low priority)
server 127.127.1.0
fudge 127.127.1.0 stratum 10

# Restrict access
restrict -4 default kod notrap nomodify nopeer noquery
restrict -6 default kod notrap nomodify nopeer noquery
restrict 127.0.0.1
restrict ::1

# Allow LAN clients to synchronize
restrict 192.168.1.0 mask 255.255.255.0 nomodify notrap

# Drift file
driftfile /var/lib/ntp/ntp.drift

# Statistics
statsdir /var/log/ntpstats/
statistics loopstats peerstats clockstats
filegen loopstats file loopstats type day enable
filegen peerstats file peerstats type day enable

Windows Time Service:

w32tm /query /status # Check current time status
w32tm /query /configuration # Show configuration
w32tm /config /manualpeerlist:"pool.ntp.org" /syncfromflags:manual /update
w32tm /resync # Force resync
w32tm /monitor # Monitor NTP peers

Cisco Device NTP Configuration:

! Set NTP server
ntp server 0.pool.ntp.org
ntp server 1.pool.ntp.org prefer ! Preferred server

! NTP authentication
ntp authenticate
ntp authentication-key 1 md5 NTPKey123!
ntp trusted-key 1

! Allow NTP on interface
interface GigabitEthernet0/1
ntp broadcast

! Check NTP status
show ntp status
show ntp associations
show ntp peer-status

NTP Commands & Tools

# Query NTP servers
ntpq -pn # Query time daemon (peers)
ntpdate -q pool.ntp.org # Query offline (one-shot)
ntpdate -s pool.ntp.org # Set time immediately

# Check synchronization status
timedatectl # Linux — overall time status
timedatectl set-ntp true # Enable NTP
timedatectl list-timezones # List timezones

# Chrony (modern alternative to ntpd)
chronyc tracking # View NTP tracking status
chronyc sources -v # List NTP sources
chronyc sourcestats -v # Detailed source statistics

# Manual SNTP query
sntp pool.ntp.org # Simple NTP query

# Monitor NTP traffic
tcpdump -i eth0 port 123

NTP Stratum vs Accuracy

NTP Security Issues

NTP DDoS (Monlist Attack):

Request: "monlist" command to NTP server
Response: ~100x amplification (small query → huge response)
Impact: Can be used to amplify DDoS attacks

Fix: Disable monlist or restrict access

Practical NTP Scenarios

Scenario 1: Setting up a Local NTP Server

# On the NTP server (Ubuntu/Debian)
sudo apt install ntp
sudo systemctl enable ntp
sudo systemctl start ntp

# Configure /etc/ntp.conf (see above)
# Add LAN client restriction

# On clients, point to the local server
# Option A: Edit /etc/ntp.conf
server 192.168.1.10 iburst

# Option B: For one-time sync
sudo ntpdate 192.168.1.10

Scenario 2: Checking Time Sync Health

ntpq -pn
remote refid st t when poll reach delay offset jitter
==============================================================================
*203.0.113.1 .GPS. 1 u 23 64 377 1.234 -0.456 0.123
+198.51.100.1 .PPS. 1 u 12 64 377 2.345 0.789 0.456
-192.0.2.1 .NIST. 1 u 45 64 377 3.456 1.234 0.789

* = Current synchronization source
+ = Candidate (good, used for selection)
- = Outlier (not used)
x = Discarded by intersection algorithm
