Building End-to-End AI Automation Systems

Advanced Automation Systems covers sophisticated automation approaches that integrate multiple technologies, create intelligent workflows, and build comprehensive end-to-end solutions—culminating in the creation of sophisticated AI-powered automation systems.

Table of Contents

• Building End-to-End AI Automation

Building End-to-End AI Automation

Building End-to-End AI Automation involves creating comprehensive automation systems that combine traditional workflow automation, API integrations, data processing, and artificial intelligence to solve complex business problems with minimal human intervention.

Why it is useful: End-to-End AI Automation creates sophisticated systems that can handle complex, variable processes requiring judgment, learning, and adaptation—going beyond simple rule-based automation to deliver true intelligent automation that improves over time.

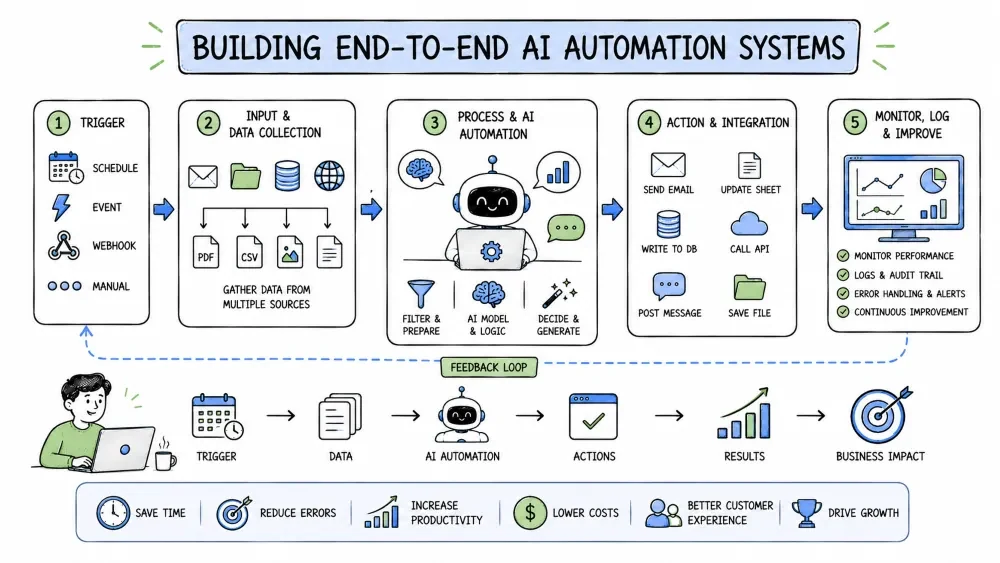

Components of End-to-End AI Automation

1. Data Ingestion Layer: Collecting data from various sources (APIs, files, databases, sensors)
2. Processing & Storage Layer: Cleaning, transforming, and storing data for analysis
3. AI/ML Layer: Applying machine learning models for prediction, classification, or generation
4. Decision & Orchestration Layer: Making decisions based on AI outputs and triggering actions
5. Action Layer: Executing automated tasks through APIs, workflows, or robotic process automation
6. Feedback & Learning Loop: Collecting outcomes to improve models and processes over time
7. Monitoring & Management: Tracking system performance, health, and business impact

Architecture Patterns

• Pipeline Architecture: Linear data flow from ingestion to action
• Microservices Architecture: Decoupled services communicating via APIs/events
• Event-Driven Architecture: Components react to events in real-time
• Hybrid Architecture: Combination of patterns based on component needs

Example: Intelligent Customer Support Automation System

import sqlite3
import logging
import re
import os
from sklearn.feature_extraction.text import TfidfVectorizer
from sklearn.naive_bayes import MultinomialNB
from sklearn.pipeline import Pipeline
import joblib

# Configure logging
logging.basicConfig(level=logging.INFO)
logger = logging.getLogger(__name__)

# ======================
# LAYER 1: DATA INGESTION
# ======================

class DataIngestionLayer:
    """Handles collecting data from various sources"""

    def __init__(self, db_path="support_system.db"):
        self.db_path = db_path
        self.init_database()

    def init_database(self):
        conn = sqlite3.connect(self.db_path)
        cursor = conn.cursor()
        cursor.execute('''
            CREATE TABLE IF NOT EXISTS support_tickets (
                ticket_id INTEGER PRIMARY KEY AUTOINCREMENT,
                customer_email TEXT,
                subject TEXT,
                description TEXT,
                category TEXT,
                priority TEXT,
                status TEXT DEFAULT 'open',
                created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
            )
        ''')
        conn.commit()
        conn.close()

    def ingest_email_ticket(self, email_data):
        """Ingest a support ticket from email"""
        try:
            customer_email = email_data.get('From', '').strip()
            subject = email_data.get('Subject', '').strip()
            description = email_data.get('Body', '')

            conn = sqlite3.connect(self.db_path)
            cursor = conn.cursor()
            cursor.execute('''
                INSERT INTO support_tickets (customer_email, subject, description)
                VALUES (?, ?, ?)
            ''', (customer_email, subject, description))
            ticket_id = cursor.lastrowid
            conn.commit()
            conn.close()

            logger.info(f"Ingested email ticket: {ticket_id}")
            return ticket_id
        except Exception as e:
            logger.error(f"Error ingesting email: {e}")
            return None

# ======================
# LAYER 2: PROCESSING & STORAGE
# ======================

class ProcessingStorageLayer:
    """Handles data cleaning, transformation, and storage"""

    def __init__(self, db_path="support_system.db"):
        self.db_path = db_path

    def clean_text(self, text):
        """Clean and normalize text for ML"""
        if not text:
            return ""
        text = text.lower()
        text = re.sub(r'\s+', ' ', text)
        text = re.sub(r'[^a-zA-Z0-9\s\.\,\!\?]', ' ', text)
        return text.strip()

    def extract_features(self, ticket_id):
        """Extract features from ticket for ML processing"""
        conn = sqlite3.connect(self.db_path)
        cursor = conn.cursor()
        cursor.execute(
            'SELECT subject, description FROM support_tickets WHERE ticket_id = ?',
            (ticket_id,)
        )
        result = cursor.fetchone()
        conn.close()

        if not result:
            return None

        subject, description = result
        full_text = f"{subject} {description}"
        cleaned = self.clean_text(full_text)

        return {
            'text_length': len(cleaned),
            'word_count': len(cleaned.split()),
            'cleaned_text': cleaned
        }

# ======================
# LAYER 3: AI/ML LAYER
# ======================

class AIMLayer:
    """Handles machine learning models for classification"""

    def __init__(self, model_path="ticket_classifier.pkl"):
        self.model_path = model_path
        self.pipeline = None
        self.categories = ['Technical', 'Billing', 'Feature', 'Account', 'General']
        self.load_or_create_model()

    def load_or_create_model(self):
        if os.path.exists(self.model_path):
            try:
                model_data = joblib.load(self.model_path)
                self.pipeline = model_data['pipeline']
                self.categories = model_data['categories']
                logger.info("Loaded existing ML model")
            except:
                self.create_model()
        else:
            self.create_model()

    def create_model(self):
        self.pipeline = Pipeline([
            ('vectorizer', TfidfVectorizer(max_features=5000, stop_words='english')),
            ('classifier', MultinomialNB())
        ])
        logger.info("Created new ML model")

    def train(self):
        """Train model with ticket data"""
        conn = sqlite3.connect("support_system.db")
        cursor = conn.cursor()
        cursor.execute('SELECT subject, description, category FROM support_tickets WHERE category IS NOT NULL')
        results = cursor.fetchall()
        conn.close()

        if len(results) < 10:
            # Use sample data if insufficient real data
            training_data = [
                ("Login error", "Cannot access account", "Account"),
                ("Invoice question", "Bill amount incorrect", "Billing"),
                ("Feature request", "Add dark mode", "Feature"),
                ("Bug report", "App crashes on startup", "Technical"),
                ("General question", "What are your hours?", "General")
            ]
        else:
            training_data = [(s, d, c) for s, d, c in results]

        texts = [f"{s} {d}" for s, d, _ in training_data]
        labels = [c for _, _, c in training_data]
        cleaned = [self.clean_text(t) for t in texts]

        self.pipeline.fit(cleaned, labels)

        # Save model
        joblib.dump({'pipeline': self.pipeline, 'categories': self.categories}, self.model_path)
        logger.info("Model trained and saved")

    def clean_text(self, text):
        if not text:
            return ""
        text = text.lower()
        text = re.sub(r'\s+', ' ', text)
        text = re.sub(r'[^a-zA-Z0-9\s\.\,\!\?]', ' ', text)
        return text.strip()

    def predict(self, ticket_id):
        """Predict category for a ticket"""
        conn = sqlite3.connect("support_system.db")
        cursor = conn.cursor()
        cursor.execute(
            'SELECT subject, description FROM support_tickets WHERE ticket_id = ?',
            (ticket_id,)
        )
        result = cursor.fetchone()
        conn.close()

        if not result:
            return {'category': self.categories[0], 'confidence': 0.0}

        subject, description = result
        cleaned = self.clean_text(f"{subject} {description}")

        try:
            pred = self.pipeline.predict([cleaned])[0]
            probs = self.pipeline.predict_proba([cleaned])[0]
            conf = max(probs)
            return {'category': pred, 'confidence': conf}
        except:
            return {'category': self.categories[0], 'confidence': 0.0}

# ======================
# LAYER 4: DECISION & ORCHESTRATION
# ======================

class DecisionOrchestrationLayer:
    """Makes decisions and orchestrates actions based on AI outputs"""

    def __init__(self, db_path="support_system.db"):
        self.db_path = db_path
        self.ai = AIMLayer()

    def process_ticket(self, ticket_id):
        """Process ticket through decision layer"""
        # Get AI prediction
        ml_result = self.ai.predict(ticket_id)
        category = ml_result['category']
        confidence = ml_result['confidence']

        # Determine priority
        priority = self.determine_priority(category)

        # Update ticket
        self.update_ticket(ticket_id, category, priority)

        # Execute actions
        actions = self.execute_actions(ticket_id, category, priority, confidence)

        logger.info(f"Processed ticket {ticket_id}: {category}, {priority}, actions: {actions}")
        return actions

    def determine_priority(self, category):
        priority_map = {
            'Technical': 'high',
            'Account': 'high',
            'Billing': 'medium',
            'Feature': 'low',
            'General': 'low'
        }
        return priority_map.get(category, 'medium')

    def update_ticket(self, ticket_id, category, priority):
        conn = sqlite3.connect(self.db_path)
        cursor = conn.cursor()
        cursor.execute('''
            UPDATE support_tickets
            SET category = ?, priority = ?, status = 'triaged'
            WHERE ticket_id = ?
        ''', (category, priority, ticket_id))
        conn.commit()
        conn.close()

    def execute_actions(self, ticket_id, category, priority, confidence):
        actions = []

        if confidence < 0.6:
            actions.append("flagged_for_review")

        if category == 'Technical' and priority == 'high':
            actions.append("escalated_to_specialist")

        if category == 'Billing':
            actions.append("routing_to_billing_team")

        if category == 'Account':
            actions.append("triggering_password_reset")

        return actions

# ======================
# LAYER 5: ACTION LAYER
# ======================

class ActionLayer:
    """Executes automated actions"""

    def send_notification(self, channel, message):
        logger.info(f"[{channel}] {message}")
        # In production: integrate with Slack, Email, PagerDuty, etc.

    def create_task(self, ticket_id, assignee, description):
        logger.info(f"Created task for {assignee}: {description}")
        # In production: integrate with Jira, Asana, etc.

# ======================
# MAIN ORCHESTRATOR
# ======================

class IntelligentSupportSystem:
    """End-to-end AI-powered support automation"""

    def __init__(self):
        self.ingestion = DataIngestionLayer()
        self.processing = ProcessingStorageLayer()
        self.ai = AIMLayer()
        self.orchestration = DecisionOrchestrationLayer()
        self.action = ActionLayer()

    def process_email(self, email_data):
        """Process incoming email through full pipeline"""
        # Ingest
        ticket_id = self.ingestion.ingest_email_ticket(email_data)
        if not ticket_id:
            return None

        # Process with AI
        self.orchestration.process_ticket(ticket_id)

        return ticket_id

    def retrain(self):
        """Retrain model with latest data"""
        self.ai.train()

    def get_metrics(self):
        """Get system health metrics"""
        conn = sqlite3.connect("support_system.db")
        cursor = conn.cursor()
        cursor.execute('SELECT status, COUNT(*) FROM support_tickets GROUP BY status')
        stats = dict(cursor.fetchall())
        conn.close()
        return stats

# Usage
if __name__ == "__main__":
    system = IntelligentSupportSystem()

    # Train initial model
    system.ai.train()

    # Process sample email
    ticket = system.process_email({
        'From': 'user@company.com',
        'Subject': 'Urgent: Cannot login to dashboard',
        'Body': 'Getting 403 error when trying to access the admin panel. Need this fixed ASAP.'
    })

    print(f"Processed ticket: {ticket}")
    print(f"System metrics: {system.get_metrics()}")

Key Integration Points

• APIs: REST, GraphQL, webhooks for system communication
• Message Queues: RabbitMQ, Kafka for async processing
• Databases: PostgreSQL, MongoDB, Redis for state management
• Monitoring: Prometheus, Grafana, Datadog for observability
• Deployment: Docker, Kubernetes, serverless for scalability
