VPN

Overview

A Virtual Private Network (VPN) creates an encrypted, secure tunnel between a device and a network over the public internet. VPNs ensure privacy, data integrity, and authentication for data transmitted across untrusted networks.

1. What is a VPN?
2. How a VPN Works
3. VPN Protocols
4. Types of VPN
5. VPN Encryption Explained
6. Setting Up a VPN
7. VPN Use Cases
8. VPN Limitations & Risks
9. Split Tunneling
Practical Exercises

1. What is a VPN?

A VPN extends a private network across a public network, enabling users to send and receive data as if their devices were directly connected to the private network.

Core Benefits

Encryption — Data is unreadable to eavesdroppers
Privacy — Hides your IP address and location
Authentication — Ensures you're connecting to the right server
Data Integrity — Prevents tampering during transit

2. How a VPN Works

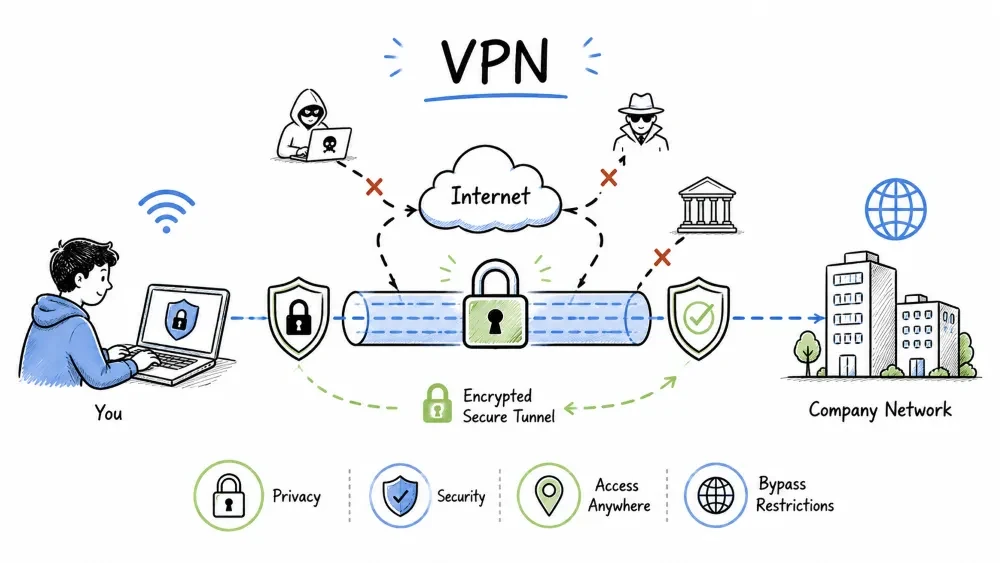

A VPN creates a secure, encrypted tunnel between your device and a remote server, hiding your online activity from your ISP, hackers, and anyone else on the network.

      ↓                                      ↓
   Local ISP sees                      Target website sees
   encrypted data                      VPN server's IP

Step-by-Step

You connect to a VPN server
VPN client encrypts your data
Encrypted data travels through a tunnel
VPN server decrypts and forwards to destination
Response follows the same path back

3. VPN Protocols

VPN protocols are the underlying technologies that define how data is encapsulated, encrypted, and transmitted through the VPN tunnel. Each protocol offers a different trade-off between security, speed, and compatibility.

Protocol	Port	Encryption	Speed	Use Case
OpenVPN	1194 UDP/TCP	AES-256	Good	General, high security
WireGuard	51820 UDP	ChaCha20	Fastest	Modern, lightweight
IPsec IKEv2	500/4500 UDP	AES-256	Fast	Mobile devices
L2TP/IPsec	1701 TCP	AES-256	Slow	Legacy systems
PPTP	1723 TCP	MPPE-128	Fast	DEPRECATED — insecure
SSTP	443 TCP	AES-256	Good	Windows, SSL-based

Protocol Comparison

Security:  WireGuard ≥ OpenVPN ≥ IKEv2 > L2TP > PPTP
Speed:     WireGuard > IKEv2 > OpenVPN > L2TP > PPTP
Setup:     WireGuard > PPTP > OpenVPN > IKEv2 > L2TP

WireGuard is the modern standard — faster, simpler, and audited. OpenVPN remains the most widely compatible.

4. Types of VPN

Different use cases require different VPN architectures — from individual remote access to connecting entire branch offices.

4.1 Remote Access VPN

Individual users connect to a corporate network from remote locations.

[Employee Laptop] → [Internet] → [VPN Gateway] → [Corporate Network]

Use Case: Remote workers accessing internal resources.

4.2 Site-to-Site VPN

Connects entire networks to each other (branch to HQ).

[Branch Office A] ←→ [Internet] ←→ [Head Office]
     ↓                                       ↓
  [VPN Gateway]                         [VPN Gateway]

Use Case: Connecting branch offices across geographic locations.

4.3 Client-Based VPN

Software installed on the user's device.

Examples: NordVPN, ExpressVPN, ProtonVPN, corporate VPN clients.

4.4 SSL VPN (Clientless)

Accessed through a web browser — no client installation needed.

[User Browser] → [HTTPS] → [SSL VPN Gateway] → [Internal App]

Use Case: Quick access to web applications without client deployment.

5. VPN Encryption Explained

VPN encryption uses a combination of symmetric encryption (for data), asymmetric encryption (for key exchange), and HMAC (for integrity) to ensure complete protection.

Symmetric Encryption (Data)

Algorithm	Key Size	Status
AES-256	256-bit	Industry standard
ChaCha20	256-bit	Modern, fast (WireGuard)
3DES	168-bit	Deprecated

Asymmetric Encryption (Key Exchange)

RSA — Traditional, slower
Elliptic Curve (ECDH) — Faster, smaller keys
Perfect Forward Secrecy (PFS) — Ensures past sessions stay secure even if the key is compromised

HMAC (Authentication)

SHA-256 — Verifies data integrity
Poly1305 — Used with ChaCha20

6. Setting Up a VPN

Setting up a VPN requires configuring both the server and client with matching encryption keys, IP assignments, and connection parameters. Below are examples for WireGuard and OpenVPN.

WireGuard Configuration Example

[Interface]
PrivateKey = <client-private-key>
Address = 10.0.0.2/24
DNS = 1.1.1.1

[Peer]
PublicKey = <server-public-key>
Endpoint = vpn.example.com:51820
AllowedIPs = 0.0.0.0/0
PersistentKeepalive = 25

OpenVPN Configuration (Client)

client
dev tun
proto udp
remote vpn.example.com 1194
resolv-retry infinite
nobind
persist-key
persist-tun
ca ca.crt
cert client.crt
key client.key
remote-cert-tls server
cipher AES-256-GCM
auth SHA256
verb 3

7. VPN Use Cases

VPNs are used in many scenarios — from corporate security to personal privacy — each leveraging the core features of encryption and tunneling differently.

Use Case	Benefit
Remote Work	Secure access to company resources from home
Public WiFi	Encrypt traffic on untrusted networks
Bypassing Geo-Restrictions	Access region-locked content
Privacy	Hide browsing activity from ISP
Secure File Transfer	Encrypted communication between offices

8. VPN Limitations & Risks

Even the best VPN has weaknesses. Understanding these risks — from logging policies to DNS leaks — is essential for safe usage.

Risk	Explanation
Logging Policy	Some VPN providers log your activity
DNS Leaks	DNS requests bypass the VPN tunnel
IP Leaks	IPv6 or WebRTC can reveal real IP
Slower Speed	Encryption overhead + routing through VPN server
Free VPNs	Often monetize by selling user data
Blocked VPNs	Some services actively block VPN IPs

How to Test for Leaks

# Check DNS leak
nslookup google.com

# Check IP
curl ifconfig.me

# WebRTC leak test
# Visit: browserleaks.com/webrtc

9. Split Tunneling

Allows some traffic to go through the VPN while other traffic goes directly to the internet.

Split Tunneling ON:
[Work traffic] → [VPN Tunnel] → [Corporate Network]
[Streaming] → [Direct] → [Internet]

Pros: Saves bandwidth, reduces latency for non-sensitive traffic Cons: Less secure, potential data leakage

Practical Exercises

Exercise 1: VPN Protocol Selection

Objective: Choose the right VPN protocol for different real-world scenarios.

Task: For each scenario below, recommend the best VPN protocol (WireGuard, OpenVPN, IKEv2, or SSL VPN) and justify your choice.

Scenario	Recommended Protocol	Why?
A remote employee connects from a coffee shop on their laptop
A mobile user switches between WiFi and cellular frequently
Two branch offices need a permanent encrypted link
A temp worker needs web access to a single internal app — no software install allowed
A security-conscious company handling classified data
A home user wants maximum speed for streaming

Bonus: For each protocol you chose, note which port it uses and whether it requires client software.

Exercise 2: VPN Setup & Leak Testing Lab

Objective: Set up a VPN connection and verify it's working correctly with no leaks.

Connect to a VPN: If you have access to a VPN service (or can use a free trial), connect to it and run these checks:

# Before connecting — note your real IP
curl ifconfig.me

# After connecting
curl ifconfig.me
# Has the IP changed?

Test for DNS Leaks: Run this test while connected to the VPN:

# Check which DNS server you're using
nslookup google.com

Does the DNS server belong to your VPN provider?
Or is it your ISP's DNS server? (If so, you have a DNS leak)

Test for IPv6 Leaks: Visit https://test-ipv6.com while connected to your VPN.

Does it show your VPN provider's IPv6 address?
Or your real IPv6 address?

Document Your Findings: Fill out this report:

Test	Before VPN	Leak? (Yes/No)
Public IP		—
DNS Server
IPv6 Address
WebRTC Leak	(check at browserleaks.com/webrtc)

Follow-up: If you found leaks, research how to fix them (disable IPv6 in VPN config, use DNS leak protection, etc.)
